Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11577799 Strap, Bale   (Replaces: W11495051) Appelez-nous -
2 W11458267 Blade, Fan   (Replaces: 2225834) In-Stock Immediately $ 23.99

3 W11632924 Condenser   (Replaces: W11553540) In-Stock Immediately $ 226.24

4 W10900442 Rail, Unit Mounting Appelez-nous -
5 489396 Clip Special Order $ 10.72

6 WP8533993 Screw   (Replaces: 8533993) Special Order $ 10.57

7 W11661849 Wire Assembly, Unit (includes Power Cord)   (Replaces: W11383260) Appelez-nous -
8 W11751592 Sleeve   (Replaces: W10303521) In-Stock Immediately $ 20.30

9 WP489427 Screw   (Replaces: 489427) Special Order $ 7.47

10 W11386791 Tube, Suction Appelez-nous -
11 W10683556 Clip, Condenser   (Replaces: 2311725) Special Order $ 18.46

12 W10897560 Cover Assembly, Unit (bottom) Special Order $ 96.73

13 2325479 Tube, Process Appelez-nous -
14 W10896764 Baffle, Air Special Order $ 96.38

15 W11544659 Screw   (Replaces: 8281232) Special Order $ 13.67

16 W11546692 Evaporator   (Replaces: W11357918) Special Order $ 251.32

17 W11751592 Sleeve   (Replaces: 2161302) In-Stock Immediately $ 20.30

18 W11578915 Motor, Condenser Fan   (Replaces: W11546724) In-Stock Immediately $ 71.42

19 W11833098 Tray, Evaporator   (Replaces: W11789193) Appelez-nous -
20 W11400740 Heat Shield And Drain Pan Assembly Appelez-nous -
21 489340 Bolt Appelez-nous -
22 W11417341 Screw   (Replaces: W10476309) Special Order $ 13.40

23 W10900446 Frame, Unit Mounting (includes Unit Mounting Rail) Appelez-nous -
24 WP489464 Screw   (Replaces: 489464A) In-Stock Immediately $ 7.83

25 WP2181929 Bracket, Fan Mounting   (Replaces: 2181929) Special Order $ 12.31

26 W11650661 Defrost Heater And Evaporator Fan Harness Assembly (includes Thermal Fuse)   (Replaces: W11573117) Special Order $ 202.03

27 W11553819 Insulation, Sound Deadening   (Replaces: 2169104) In-Stock Immediately $ 14.07

28 W11580057 Compressor   (Replaces: W11663223) In-Stock Immediately $ 381.10

29 W11678305 Precooler Assembly, Formed (includes Dampener)   (Replaces: W11442858) Special Order $ 63.46

30 W11109499 Drier (service Drier Without Dye)   (Replaces: W10805035) In-Stock Immediately $ 39.12

31 W11547180 Start Device, Combination (start Relay And Overload)   (Replaces: W11359381) In-Stock Immediately $ 37.83

32 WPW10662129 Capacitor   (Replaces: W10590083) In-Stock Immediately $ 58.86

33 WPW10339879 Tie, Wire   (Replaces: 2263990) Special Order $ 7.90

34 W10812039 Clip, Wire   (Replaces: 2326941) Special Order $ 10.59

35 WP2300868 Connector, Union   (Replaces: W10271541) In-Stock Immediately $ 29.05

36 W11611126 Heat Probe   (Replaces: W11399989) Special Order $ 22.06

37 WP489478 Screw   (Replaces: 489478) Special Order $ 7.75

38 W11678963 Compressor Grommet   (Replaces: W10806346) Special Order $ 8.10

39 W11623163 Clip   (Replaces: 2304287) Appelez-nous -
40 W11553819 Sound Insulation   (Replaces: 2215468) In-Stock Immediately $ 14.07

ARI218C55FB7BD35699416A909454649B8F 68 Grams (r600a) Appelez-nous -
ARIA203FEA88A0C0545C484B4E1C20B771B Refrigerant Charge Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

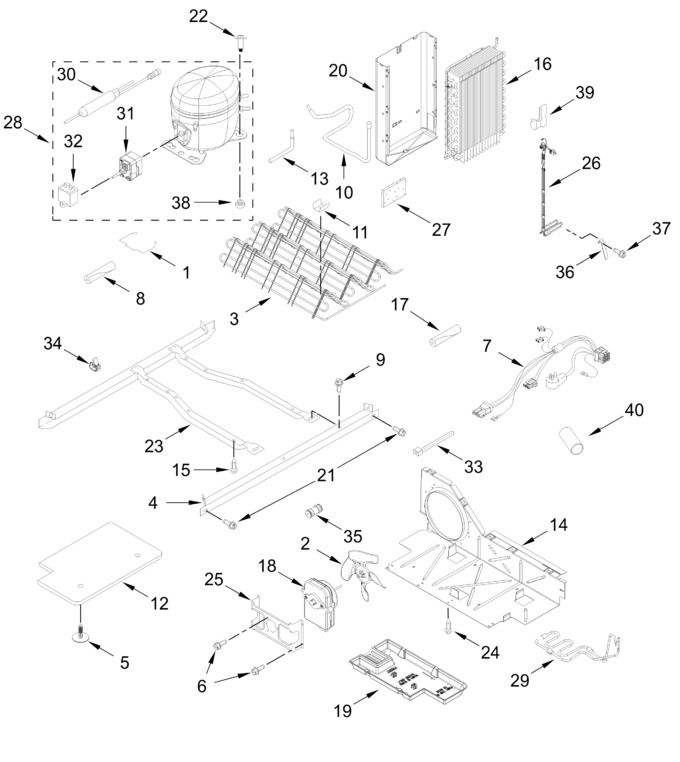

Diagram for WRS315SDHZ20
