Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11263195 Scroll, Fan   (Replaces: W11228713) Special Order $ 324.05

2 W11700295 Retainer, Fan Motor   (Replaces: W10188846) Special Order $ 22.19

3 WP489478 Screw   (Replaces: 489478) Special Order $ 7.75

4 4388358 Support, Fan Scroll (left Side)   (Replaces: W11414496) Special Order $ 31.16

5 W11794339 Air Duct, Freezer (rear)   (Replaces: W11768512) Appelez-nous -
6 4388500 Gasket, Air Duct   (Replaces: W10252477) Special Order $ 90.39

7 WP2315549 Motor, Fan   (Replaces: 2315549) In-Stock Immediately $ 249.86

8 WP2169142 Blade, Fan   (Replaces: 2169142) In-Stock Immediately $ 43.41

9 WP2304241 Gasket   (Replaces: 2304241) In-Stock Immediately $ 82.80

10 WP2176759 Grommet, Motor   (Replaces: 2176759) Special Order $ 7.77

11 WP693995 Screw   (Replaces: W10142292) In-Stock Immediately $ 7.19

12 WPW10463013 Cover, Evaporator   (Replaces: W10463013) Special Order $ 313.41

13 WP2155789 Gasket, Fan Scroll   (Replaces: 2155789) Special Order $ 7.79

4388358 Support, Fan Scroll (right Side)   (Replaces: W11414497) Special Order $ 31.16


    View Diagram in Separate Window     Print Icon   Print Part List

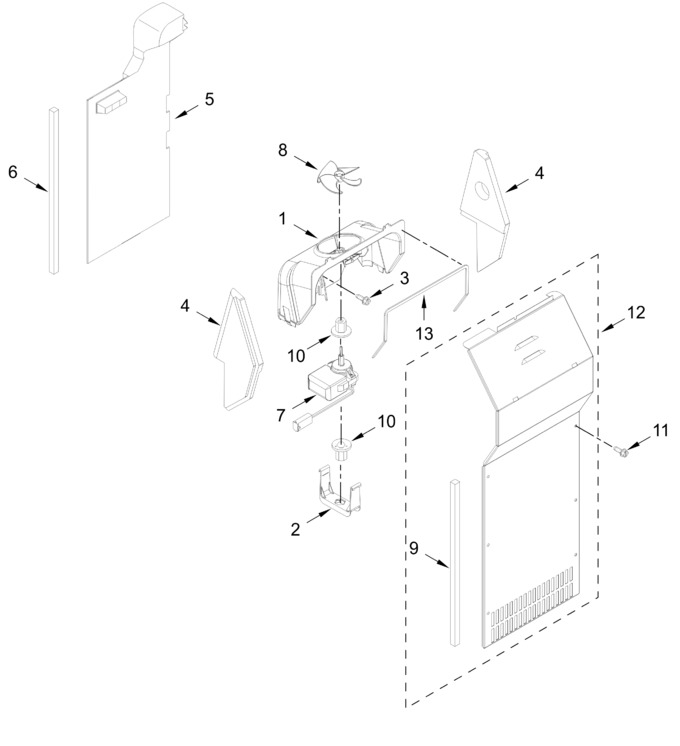

Diagram for WRS315SDHZ20
