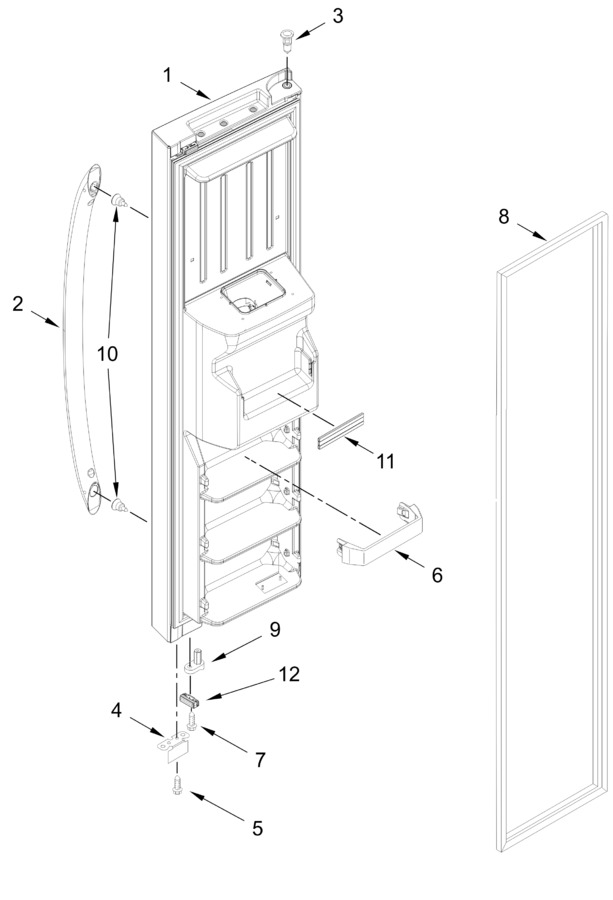

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11803026 | Door Assembly (stainless, Includes Door Gasket) (Replaces: W11739472) |
|
- | |||||
| 2 | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 151.77 | ||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 7.76 | |||||
| 4 | W11557261 | Bracket, Door Stop (Replaces: W11481757) |
|
Immediately | $ 17.78 | ||||
| 5 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.52 | |||||
| 6 | WP2309718 | Trivet (Replaces: 2309718) |
|
$ 58.56 | |||||
| 7 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.85 | |||||
| 8 | W10136735 | Gasket, Door (grey) (Replaces: W10912081) |
|
$ 254.84 | |||||
| 9 | W11661926 | Cam, Thimble (Replaces: W10900532) |
|
$ 13.35 | |||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 11 | WPW10307490 | Trim, Door Shelf (Replaces: W10307494) |
|
Immediately | $ 23.11 | ||||
| 12 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 22.24 |
