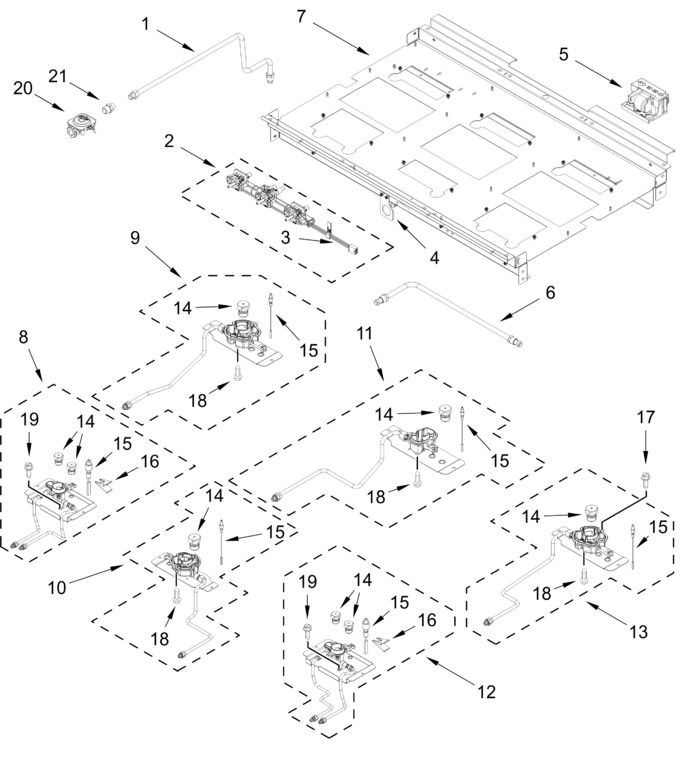

Burner Box And Orifice Holder Assembly Parts


Chassis Parts


Cooktop, Burner And Grate Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11364214		Tube, Pressure Regulator   (Replaces: W11181648)				$ 113.12
2	W11789634		Valve Manifold Assembly   (Replaces: W11730116)				$ 537.99
3	W11789636		Switch, Harness   (Replaces: W11749907)				$ 392.52
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 79.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	W11789637		Tube, Manifold Supply   (Replaces: W11730165)		Appelez-nous	-
7	ARIDBAA9548A1EB15B27ADE369B6B57A1AD		Box, Burner (not Serviced)		Appelez-nous	-
8	W11805917		Orifice Holder Assembly   (Replaces: W11775870)		Appelez-nous	-
9	W11789647		Orifice Holder Assembly   (Replaces: W11729473)		Appelez-nous	-
10	W11789648		Orifice Holder Assembly   (Replaces: W11729474)		Appelez-nous	-
11	W11789650		Orifice Holder Assembly   (Replaces: W11729472)		Appelez-nous	-
12	W11805918		Orifice Holder Assembly   (Replaces: W11775871)		Appelez-nous	-
13	W11789673		Orifice Holder Assembly   (Replaces: W11729475)		Appelez-nous	-
14	ARIE067872F6F52DD2FD69D26241530A01D		Orifice (not Serviced, Must Order Orifice Holder Assembly)		Appelez-nous	-
15	W11788750		Igniter   (Replaces: W11759723)			Immediately	$ 35.81
16	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
17	W11788768		Screw   (Replaces: W11719156)		Appelez-nous	-
18	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
19	3196172		Screw			Immediately	$ 13.47
20	W11193822		Regulator, Pressure   (Replaces: W10896959)			Immediately	$ 297.57
21	4453116		Adapter, Male				$ 179.43
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	ARI88E426939977D33DD3457E2E56EFBF85		(center Front, Center Rear)		Appelez-nous	-
	W10624584		Cord, Power				$ 189.57
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARI55C06F183F5209A80F64451115E0C931		(left)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W10780278		Harness, Door Lock			Immediately	$ 95.87
	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 11.01
	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
	ARI5D10814EA01143EB5BE4EE5A9E8F71F6		(center Front)		Appelez-nous	-
	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
	4450800		Screw, Grounding				$ 13.47
	W11797099		Lp Oven Conversion Kit   (Replaces: W11779797)		Appelez-nous	-
	W11797098		Lp Surface Conversion Kit   (Replaces: W11779130)		Appelez-nous	-
	W11789644		Tube, Manifold Supply   (Replaces: W11730166)		Appelez-nous	-
	W11789635		Valve Manifold Assembly   (Replaces: W11730117)		Appelez-nous	-
	W11790531		Harness, Communication   (Replaces: W11766035)				$ 139.03
	W11788752		Igniter   (Replaces: W11759742)		Appelez-nous	-
	W11788751		Igniter   (Replaces: W11759741)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	ARI2169B97BF20A354D7DD745BC3DBD5C8C		(left Front, Left Rear, Center Rear)		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12		(center Rear)		Appelez-nous	-
	ARIA67675F677EBF4F21732844667A34174		(center Front, Right Front, Right Rear)		Appelez-nous	-
	ARI97EE49875860764C24B1F1C761487B6B		(right)		Appelez-nous	-
	W11448063		Harness, Main (36 In)				$ 343.16
	W11446239		Ignitor Wire, Wire-electrode Broil   (Replaces: W11311197)				$ 23.97
	W11446236		Ignitor Wire, Wire-electrode Bake   (Replaces: W11311196)				$ 21.16
	W11200332		Harness, Cooktop				$ 195.65
