Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10850807 Screw   (Replaces: W10720084) Special Order $ 7.77

2 W11688507 Insulation, Convection Cover   (Replaces: W10282821) In-Stock Immediately $ 27.10

3 W10822069 Rack, Oven In-Stock Immediately $ 138.59

4 W11794357 Rack, Sliding Oven   (Replaces: W11496903) Special Order $ 534.90

5 W10739592 Screw Appelez-nous -
6 W11662207 Baffle, Convection   (Replaces: W11212180) Special Order $ 173.23

7 W10794440 Motor, Convection   (Replaces: W10631506) In-Stock Immediately $ 332.30

8 W10819914 Blade, Fan   (Replaces: W10631503) In-Stock Immediately $ 88.67

9 W10261523 Plate, Fan Special Order $ 77.85

10 W10794042 Nut, Acorn (left Hand Thread)   (Replaces: W10631504) Special Order $ 13.14

11 W11098505 Element, Convection Heat Special Order $ 159.46

12 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16


    View Diagram in Separate Window     Print Icon   Print Part List

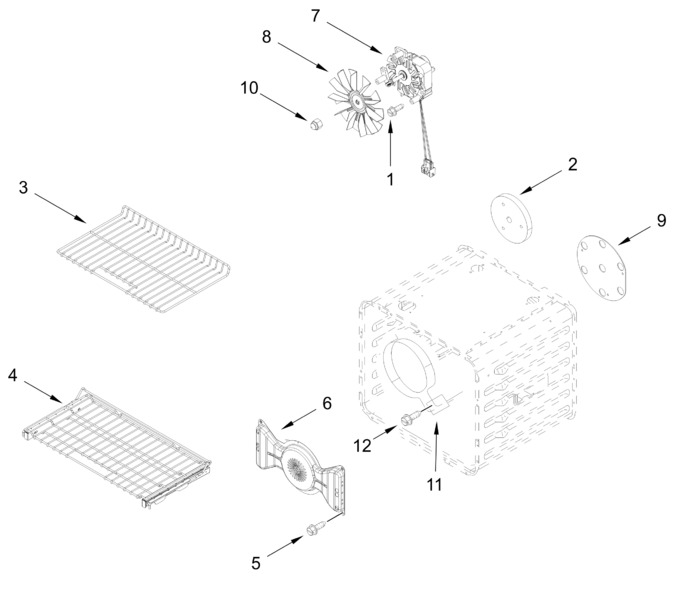

Diagram for KFGS936SJP00
