Diagram for Burner Box And Orifice Holder Assembly Parts
Burner Box And Orifice Holder Assembly Parts

Diagram for Chassis Parts
Chassis Parts

Diagram for Cooktop, Burner And Grate Parts
Cooktop, Burner And Grate Parts

Diagram for Internal Oven Parts
Internal Oven Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Oven Door Parts
Oven Door Parts

Diagram for Oven Parts
Oven Parts

Diagram for Venting Parts
Venting Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11820193 Console Panel (juniper)   (Replaces: W11768478) Appelez-nous -
2 W11789234 Grate Burner Kit Special Order $ 565.75

3 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

4 W11674763 Screw   (Replaces: W10919387) Special Order $ 14.76

5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

6 3196265 Screw   (Replaces: 3400099) Appelez-nous -
7 W11788785 Screw   (Replaces: W11755190) Appelez-nous -
8 W11320149 Barrier, Appliance Manager   (Replaces: W11281269) Special Order $ 130.57

9 W11789674 User Interface   (Replaces: W11777684) Special Order $ 465.97

10 7101P33860 Screw Appelez-nous -
11 W11820168 Bezel Assembly, Gas Burner (juniper)   (Replaces: W11801798) Appelez-nous -
12 W10162096 Screw Special Order $ 21.90

13 W11576413 Cap, Stack Burner (black)   (Replaces: W11346163) Special Order $ 89.25

14 W11436986 Flame Spreader, Stack   (Replaces: W11348511) In-Stock Immediately $ 71.73

15 W11790606 Push Button Start Assembly (juniper)   (Replaces: W11769832) Appelez-nous -
16 W11794771 Knob, Oven Mode (juniper)   (Replaces: W11758665) Appelez-nous -
17 W11789676 Manager, Powermax Appliance   (Replaces: W11777694) In-Stock Immediately $ 465.97

18 W11788773 Panel, Left Cooktop (black)   (Replaces: W11758655) Appelez-nous -
19 W11789677 Panel, Center Cootkop (black)   (Replaces: W11758657) Special Order $ 425.24

20 W11789679 Panel, Right Cooktop (black)   (Replaces: W11758658) Appelez-nous -
21 W10130760 Bracket, Moving Console (left) Special Order $ 75.94

22 W10130759 Bracket, Moving Console (right) Special Order $ 75.94

23 W11789675 Cap, Burner (black, Set Of 4)   (Replaces: W11748806) Appelez-nous -
24 W11794773 Knob, Dual (juniper)   (Replaces: W11732025) Appelez-nous -
25 W10271524 Trim, T-strip (black) Special Order $ 212.34

26 W10323250 Insert, Island Trim Special Order $ 181.79

27 W11794777 Bezel Assembly, Oven (juniper)   (Replaces: W11738552) Appelez-nous -
28 W11794778 Knob, Oven Temperature (juniper)   (Replaces: W11740405) Appelez-nous -
29 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

30 W11790603 Push Button Light Assembly (juniper)   (Replaces: W11769834) Appelez-nous -
31 W11476245 Trim, Island Special Order $ 404.65

32 W11531096 Flame Spreader   (Replaces: W11352193) Special Order $ 81.92

33 W11531098 Flame Spreader   (Replaces: W11352197) Special Order $ 80.72

34 W11794774 Knob, Single (juniper)   (Replaces: W11731285) Appelez-nous -
35 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 (center Rear) Appelez-nous -
ARI5F3F33C66B028760CF46AC61DE6BE21E (left Rear, Center Front, Center Rear, Right Rear) Appelez-nous -
ARID5FC0C9D80A03900EBB467174EE74F38 (left Rear, Center Front, Right Rear) Appelez-nous -
ARI68146C2FADA8E1AE3122F181AC9275E2 (left Front, Right Front) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

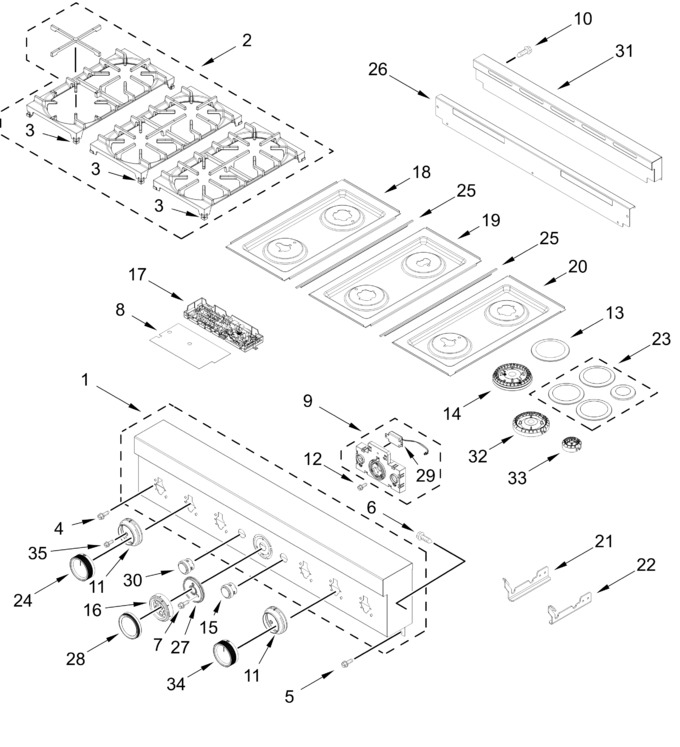

Diagram for KFGS936SJP00
