Diagram for Burner Box And Orifice Holder Assembly Parts
Burner Box And Orifice Holder Assembly Parts

Diagram for Chassis Parts
Chassis Parts

Diagram for Cooktop, Burner And Grate Parts
Cooktop, Burner And Grate Parts

Diagram for Internal Oven Parts
Internal Oven Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Oven Door Parts
Oven Door Parts

Diagram for Oven Parts
Oven Parts

Diagram for Venting Parts
Venting Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP4450249 Thermostat (tod)   (Replaces: 4450249) In-Stock Immediately $ 211.50

2 W10859573 Probe, Sensor   (Replaces: W10622170) In-Stock Immediately $ 133.83

3 W10105790 Bumper (includes Screw) Special Order $ 7.41

4 W11029221 Latch, Motorized   (Replaces: W10830016) In-Stock Immediately $ 327.65

5 W10145743 Tube, Vent Appelez-nous -
6 W11233684 Oven Light Assembly   (Replaces: W11223932) Special Order $ 111.33

7 W10169756 Lens, Light Special Order $ 42.19

8 WPW10169757 Bulb, Light   (Replaces: W10169757) In-Stock Immediately $ 47.38

9 ARI8F73C283CB1A0CC3E053DB4C6CDD3B07 Receiver, Hinge (not Serviced) Appelez-nous -
10 ARI8F73C283CB1A0CC3E053DB4C6CDD3B07 Receiver, Hinge (not Serviced) Appelez-nous -
11 ARID977495C9905E1411E0312A526DED125 Liner, Oven (not Serviced) Appelez-nous -
12 W11750310 Retainer, Left Side Chassis   (Replaces: W11683297) Appelez-nous -
13 W11750312 Retainer, Right Side Chassis   (Replaces: W11683296) Appelez-nous -
14 W10160858 Cover, Latch Special Order $ 76.94

15 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 14.72

16 W11192749 Frame, Front Special Order $ 395.15

17 4449748 Screw Special Order $ 14.23

18 W10308051 Box, Broil Appelez-nous -
19 7101P43460 Screw Appelez-nous -
20 W11355920 Electrode, Broil   (Replaces: W11182863) Special Order $ 73.46

21 W11355922 Electrode, Bake   (Replaces: W11205400) In-Stock Immediately $ 70.19

22 WPW10145744 Support, Bake Pan   (Replaces: W10145744) Special Order $ 214.15

23 WP12992902 Screw   (Replaces: 12992902) Special Order $ 11.91

24 W10317437 Bracket, Broil Standoff Appelez-nous -
25 W11643161 Burner, Bake   (Replaces: W10878504) In-Stock Immediately $ 185.14

26 W11661180 Burner, Broil   (Replaces: W10311335) Special Order $ 175.93

27 W10308040 Bracket, Bake Burner Appelez-nous -
28 W11688851 Insulation, Broil Cover   (Replaces: W10311009) Appelez-nous -
29 W10310985 Cover, Broil Appelez-nous -
30 W11355244 Tube, Broil   (Replaces: W11109238) Special Order $ 185.59

31 W11355919 Tube, Bake   (Replaces: W11106980) In-Stock Immediately $ 180.63

32 W11356251 Tube, Gas   (Replaces: W11107279) Special Order $ 183.67

33 W10145362 Bracket-board, Dsi Special Order $ 81.33

34 WPW10511278 Module, Spark Dsi   (Replaces: W10511278) In-Stock Immediately $ 239.59

35 W11661576 Pan, Oven Bottom   (Replaces: W10496809) In-Stock Immediately $ 173.11

36 7101P42660 Screw Appelez-nous -
37 WP9755546 Nut, Hidden   (Replaces: 9755546) Special Order $ 7.30

W11688536 Insulation, Bottom   (Replaces: W10299356) Appelez-nous -
WP3400968 Nut   (Replaces: 3400968) In-Stock Immediately $ 8.36

ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
W11688334 Insulation, Back, 36 In   (Replaces: W11108226) Appelez-nous -
W11688743 Insulation, Wrap   (Replaces: W10282811) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

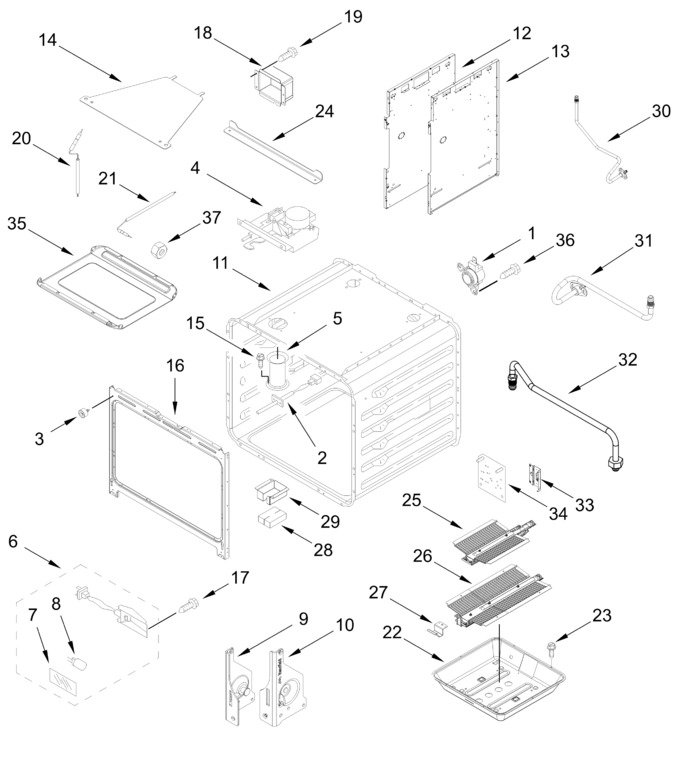

Diagram for KFGS936SJP00
