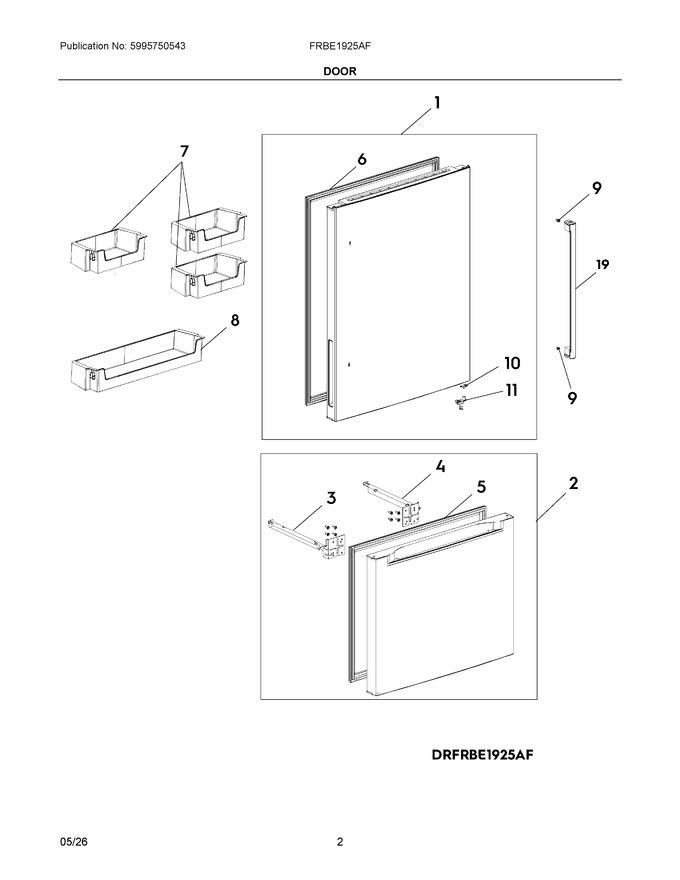

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056042197 | Door Assembly Complete, Refrigerator, Stainless |
|
$ 210.18 | |||||
| 2 | 4056039292 | Door Assembly Complete, Freezer, Stainless |
|
$ 262.43 | |||||
| 3 | 4056039300 | Slide Rail, Left Support, Freezer Door |
|
- | |||||
| 4 | 4056039318 | Slide Rail, Right Support, Freezer Door |
|
- | |||||
| 5 | 4056039326 | Gasket, Freezer Door |
|
$ 63.34 | |||||
| 6 | 4056039706 | Gasket, Refrigerator, Door |
|
$ 53.94 | |||||
| 7 | 4056039722 | Bin, Door Shelf, Small |
|
$ 22.19 | |||||
| 8 | 4056039730 | Bin, Door Shelf, Large |
|
$ 36.63 | |||||
| 9 | 4056042189 | Handle Bolt, Upper & Lower |
|
$ 3.97 | |||||
| 10 | 5304523542 | Stop, Door, Middle Hinge |
|
$ 10.62 | |||||
| 11 | 5304523512 | Closer, Door, Hinge |
|
Immediately | $ 8.34 | ||||
| 19 | 4056039672 | Handle Door, Stainless |
|
$ 168.02 | |||||
| NI | 4056058532 | Handle Screw Kit |
|
Immediately | $ 14.82 |
