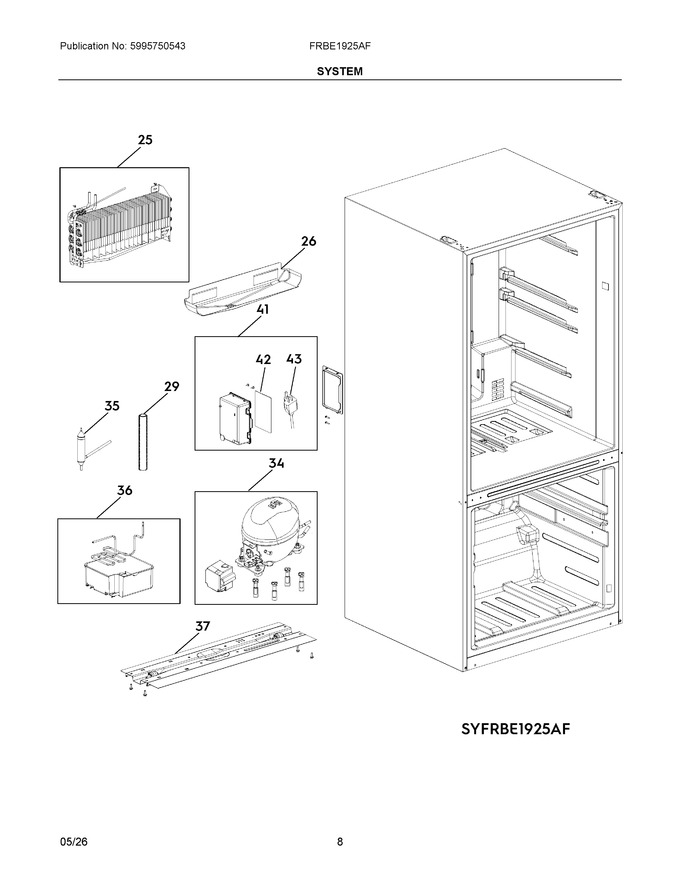

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 25 | 4056039516 | Evaporator Assembly, W/defrost Heater |
|
- | |||||
| 26 | 4056039532 | Evaporator Tray, Drain |
|
- | |||||
| 29 | 5304536985 | Tube, Drain |
|
- | |||||
| 34 | 4056039623 | Compressor Assembly, W/inverter |
|
- | |||||
| 35 | 4056039631 | Filter Drier |
|
- | |||||
| 36 | 4056039649 | Drain Assembly, W/connector Pip |
|
$ 27.67 | |||||
| 37 | 4056039664 | Base Assembly, Compressor, Plate |
|
- | |||||
| 41 | 4056039805 | Main Electronic Board, Assembly, W/housing & Power Cord |
|
$ 183.74 | |||||
| 42 | 4056044110 | Configured Electronic, Power Board |
|
- | |||||
| 43 | 5304536983 | Power Cord |
|
- |
