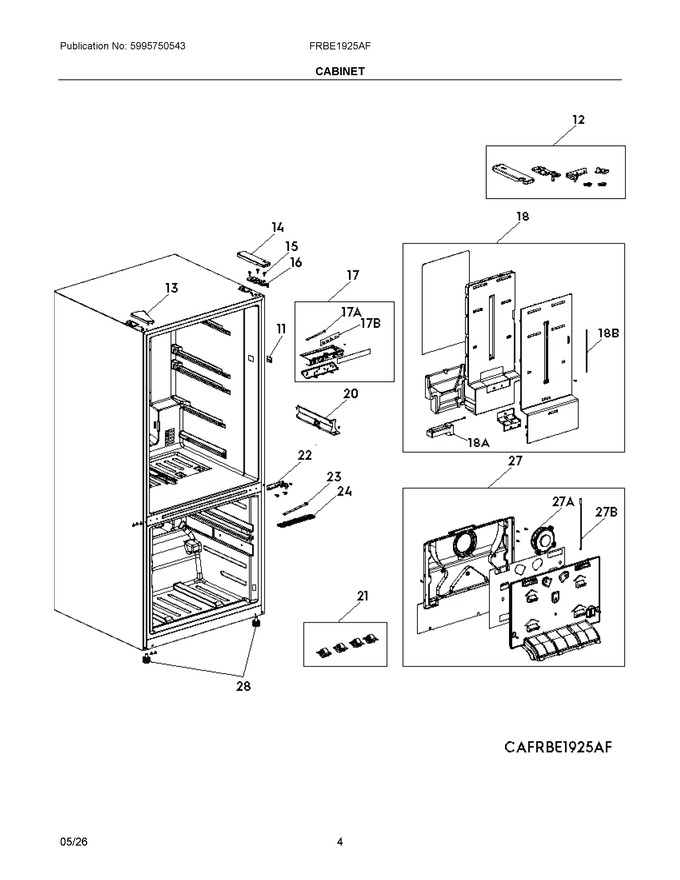

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304498687		Switch, Lamp/light				$ 51.03
12	4056039813		Door Reversal Parts, Kit				$ 30.89
13	4055973897		Cover Hinge, Upper, Left		Appelez-nous	-
14	4056039755		Cover Hinge, Upper, Right		Appelez-nous	-
15	5304480019		Screw, Tapping-locking				$ 7.83
16	4056039763		Hinge Assembly, Upper Right		Appelez-nous	-
17	4056039433		Lamp Assembly, Mounting Box				$ 68.27
18	4056039441		Cover Assembly, Air Chamber, Refrigerator		Appelez-nous	-
20	4056039482		Base Panel		Appelez-nous	-
21	4056039490		Support Components		Appelez-nous	-
22	4056039581		Hinge Assembly, Middle Section				$ 19.44
23	4055974531		Led Lamp		Appelez-nous	-
24	4056039508		Lamp Cover, Freezer		Appelez-nous	-
27	4056039466		Cover Assembly, Air Chamber, Freezer				$ 133.94
28	5304490980		Leveling Foot, Adjustable				$ 38.51
17A	5304536962		Light Bulb, Lamp				$ 21.03
17B	4056042171		Control And Display Board		Appelez-nous	-
18A	4056039458		Damper Assembly, Electric				$ 55.00
18B	5304513784		Sensor, Temperature				$ 34.89
27A	4056039474		Motor, Air Chamber, Freezer Fan				$ 84.06
27B	5304536967		Thermostat, Temperature			Immediately	$ 9.91
