| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

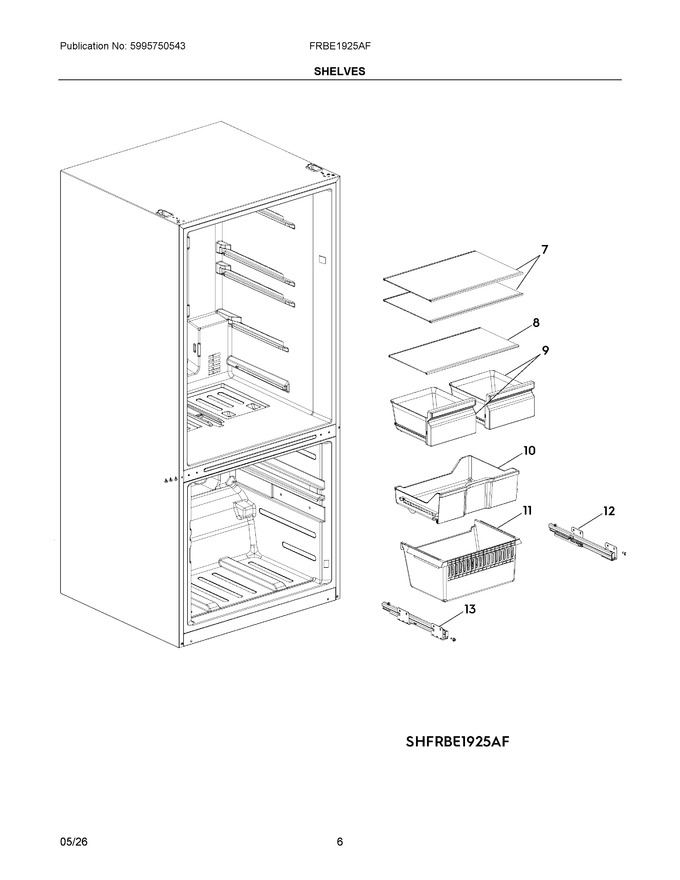

| 7 | 4056039367 | Glass Shelf Assembly, Upper, Refrigerator |
|
$ 59.63 | |||||
| 8 | 4056039375 | Glass Shelf Assembly, Lower, Refrigerator |
|
- | |||||
| 9 | 4056039383 | Drawer Assembly, Vegetable Box, Left-right |
|
- | |||||
| 10 | 4056039391 | Drawer Assembly, Upper, Freezer |
|
- | |||||
| 11 | 4056039425 | Drawer Assembly, Lower, Freezer |
|
- | |||||
| 12 | 4056039409 | Slide Rail, Support Right, Freezer Drawer |
|
- | |||||
| 13 | 4056039417 | Slide Rail, Support Left, Freezer Drawer |
|
- |
