Cabinet Parts


Freezer Door Parts


Freezer Liner Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

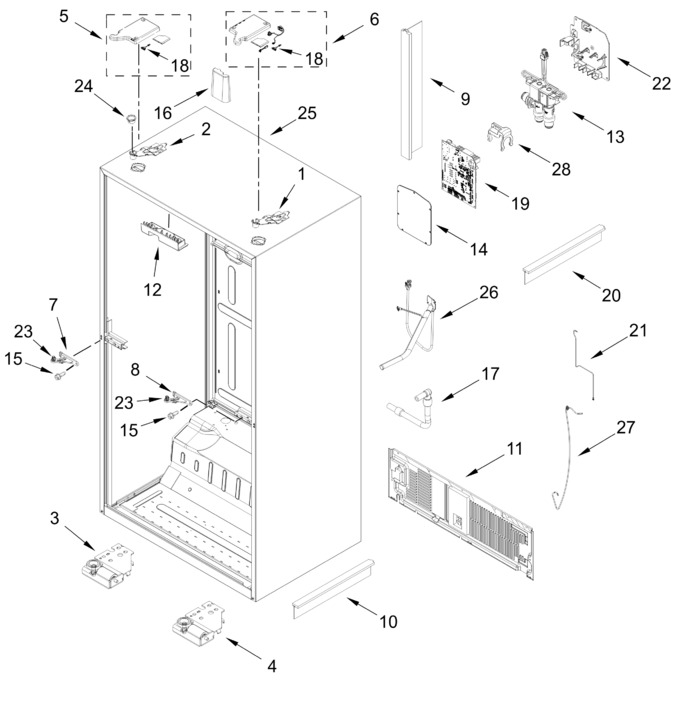

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11786665		Top Hinge Assembly (right Hand)   (Replaces: W11354191)		Appelez-nous	-
2	W11791043		Top Hinge Assembly (left Hand)   (Replaces: W11342589)		Appelez-nous	-
3	W11791081		Roller Bracket Assembly (left Hand)   (Replaces: W11561088)				$ 80.20
4	W11791174		Roller Bracket Assembly (right Hand)   (Replaces: W11561087)				$ 80.20
5	W11824298		Hinge Cover Assembly (lh, Includes Reed Switch And Foil)   (Replaces: W11799814)		Appelez-nous	-
6	W11830503		Hinge Cover Assembly (rh, Includes Reed Switch And Humidity Sensor)   (Replaces: W11799809)		Appelez-nous	-
7	W11786846		Center Hinge Assembly (left Hand)   (Replaces: W11553339)				$ 93.33
8	W11786849		Center Hinge Assembly (right Hand)   (Replaces: W11554905)		Appelez-nous	-
9	W11785608		Air Separator Assembly   (Replaces: W11681218)		Appelez-nous	-
10	W11785609		Air Separator Assembly (cabinet)   (Replaces: W11681219)		Appelez-nous	-
11	W11807499		Unit Cover Assembly   (Replaces: W11797551)		Appelez-nous	-
12	W11838113		Pivot Block   (Replaces: W11808291)		Appelez-nous	-
13	W11807354		Dual Valve   (Replaces: W11777328)				$ 172.38
14	W11785633		Lid Hv Assembly   (Replaces: W11701312)		Appelez-nous	-
15	W11819838		Screw   (Replaces: W11729359)		Appelez-nous	-
16	W11785638		Tube Inlet   (Replaces: W11551460)				$ 63.95
17	W11807586		Filter Outlet Tube   (Replaces: W11768632)		Appelez-nous	-
18	W11785649		Reed Switch   (Replaces: W11548358)				$ 49.08
19	W11833835		Electronic Control   (Replaces: W11814926)				$ 405.10
20	W11790663		Air Bottom Separator   (Replaces: W11676389)		Appelez-nous	-
21	W11807673		Icemaker Water Tube   (Replaces: W11768995)		Appelez-nous	-
22	W11790671		Triple Valve Bracket   (Replaces: W11541794)		Appelez-nous	-
23	WPW10505294		Door Coupler   (Replaces: W10505294)				$ 11.90
24	W10705239		Door Wire Retainer			Immediately	$ 51.64
25	ARI2948F547D7C4C1B6CA0878B04EDFC4EF		Cabinet (not A Servicable Part)		Appelez-nous	-
26	W11807669		Fill Tube Assembly   (Replaces: W11796059)		Appelez-nous	-
27	W11845145		Cabinet Fill Tube   (Replaces: W11822576)		Appelez-nous	-
28	W11252188		Double Lock Ring				$ 20.85
