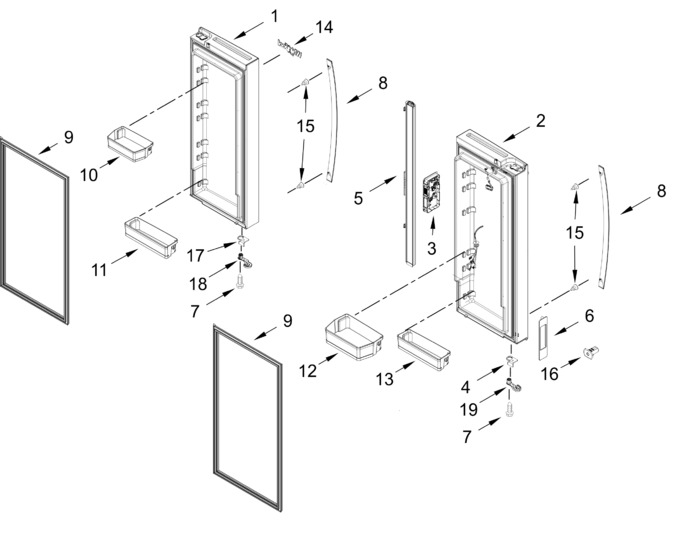

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11796982		Right Door Assembly (stainless)   (Replaces: W11672796)				$ 598.85
2	W11797002		Left Door Assembly (stainless)   (Replaces: W11672783)		Appelez-nous	-
3	W11819772		Hmi Assembly   (Replaces: W11549158)				$ 285.71
4	W11787142		Door Stopper (black, Left Hand)   (Replaces: W11681260)		Appelez-nous	-
5	W11787150		Mullion Flipper Assembly   (Replaces: W11555781)		Appelez-nous	-
6	W11787152		Door Duct Retainer   (Replaces: W11685003)		Appelez-nous	-
7	WP8281136		Screw   (Replaces: 8281136)				$ 7.30
8	W11163764		Door Handle (stainless)   (Replaces: W11045530)			Immediately	$ 151.77
9	W11816123		Refrigerator Door Gasket (grey)   (Replaces: W11586645)				$ 223.35
10	W11787174		Gallon Bin   (Replaces: W11695930)		Appelez-nous	-
11	W11787154		Bottom Bin (right Hand)   (Replaces: W11692521)		Appelez-nous	-
12	W11819773		Gallon Bin   (Replaces: W11579654)		Appelez-nous	-
13	W11787156		Bottom Bin (left Hand)   (Replaces: W11692526)		Appelez-nous	-
14	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 87.26
15	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
16	W11787121		Retainer Plug   (Replaces: W11719970)		Appelez-nous	-
17	W11818657		Door Stopper (black, Right Hand)   (Replaces: W11681256)		Appelez-nous	-
18	W11818658		Door Bushing (grey, Right Hand)   (Replaces: W11562282)		Appelez-nous	-
19	W11818659		Door Bushing (grey, Left Hand)   (Replaces: W11562283)		Appelez-nous	-
