SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

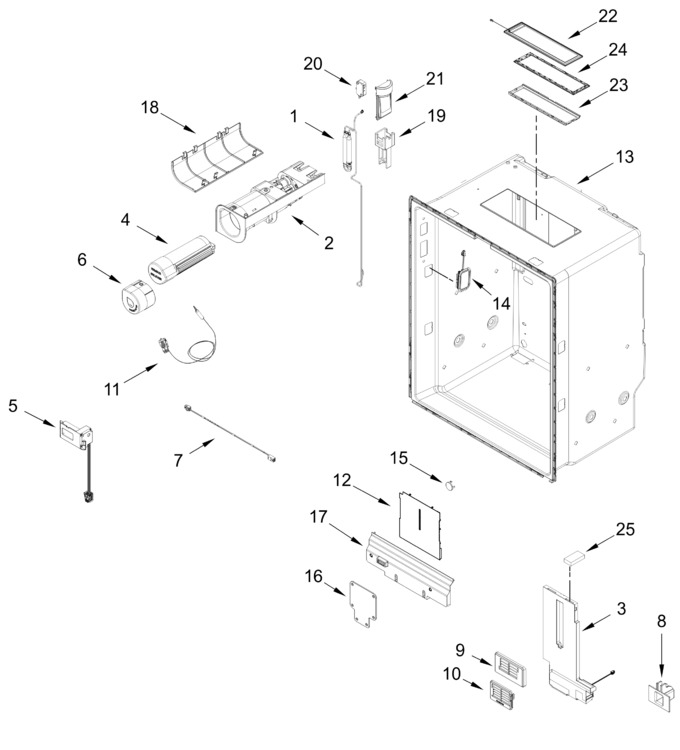

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11807674		Water Reservoir   (Replaces: W11768672)		Appelez-nous	-
2	W11835062		Water Filter Housing   (Replaces: W11803101)		Appelez-nous	-
3	W11786887		Tower Cover   (Replaces: W11589849)				$ 441.95
4	EDRARXD1B		Water Filter   (Replaces: W11536439)			Immediately	$ 49.99
5	W11790525		Damper Assembly   (Replaces: W11512870)				$ 135.61
6	W11759994		Water Filter Housing Plug   (Replaces: W11669931)				$ 12.77
7	W11787131		Pantry Jumper Assembly   (Replaces: W11717382)		Appelez-nous	-
8	W11786920		Eps Holder   (Replaces: W11733721)		Appelez-nous	-
9	W11786940		Air Return Duct Grille   (Replaces: W11608374)		Appelez-nous	-
10	W11787802		Air Return Grille   (Replaces: W11615361)		Appelez-nous	-
11	W11787118		Thermistor, Refrigerator Temperature   (Replaces: W11669736)		Appelez-nous	-
12	W11787780		False Wall   (Replaces: W11608354)		Appelez-nous	-
13	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
14	W11818649		Led Light Module   (Replaces: W11598835)		Appelez-nous	-
15	W11818706		Screw Cover   (Replaces: W11608474)		Appelez-nous	-
16	W11787791		Port Lid Assembly   (Replaces: W11724694)		Appelez-nous	-
17	W11787778		Lower False Wall   (Replaces: W11608360)		Appelez-nous	-
18	W11759993		Water Filter Housing Cover (lower)   (Replaces: W11611401)				$ 81.11
19	W11807356		Water Tube Holder   (Replaces: W11775450)				$ 14.58
20	W11807357		Microswitch   (Replaces: W11777021)				$ 14.58
21	W11818709		Dispenser Fascia   (Replaces: W11769079)		Appelez-nous	-
22	W11839160		Sky Light Led Panel   (Replaces: W11549348)		Appelez-nous	-
23	W11839162		Sky Light Lens (white Fog)   (Replaces: W11612596)		Appelez-nous	-
24	W11844108		Sky Light Trim (white)   (Replaces: W11836232)		Appelez-nous	-
25	W11842286		Air Tower Gasket (top)   (Replaces: W11836816)				$ 12.34

    View Diagram in Separate Window       Print Part List
