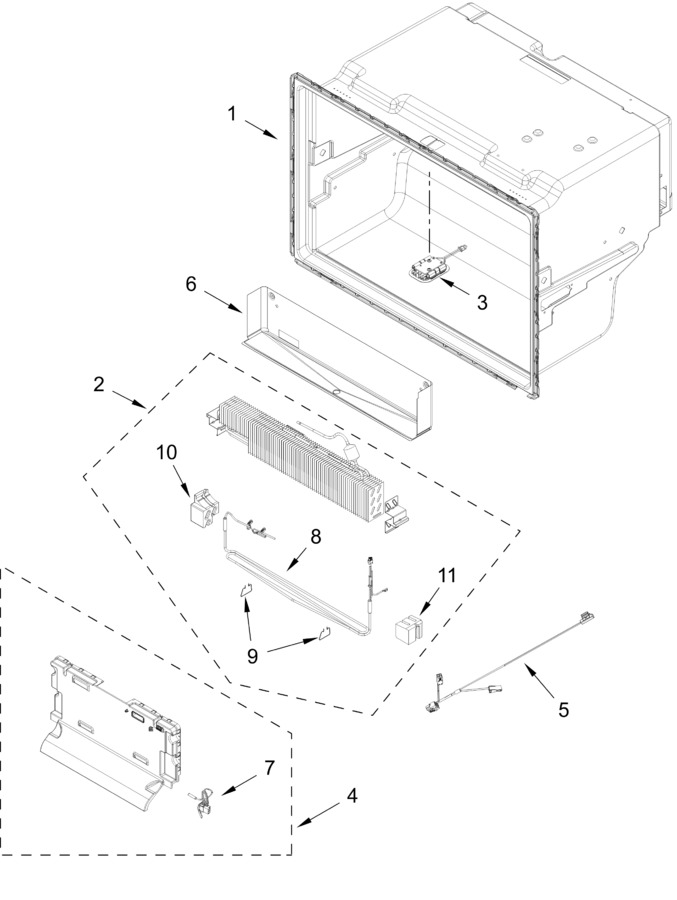

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARID4B24459AD3CE840514D8AC6D2EFEC61		Liner (not A Seviceable Part)		Appelez-nous	-
2	W11786909		Evaporator Assembly   (Replaces: W11646272)		Appelez-nous	-
3	W11483116		Led Light Module   (Replaces: W11228040)			Immediately	$ 21.81
4	W11795508		Evaporator Cover Assembly   (Replaces: W11609201)				$ 226.70
5	W11816125		Evaporator Wire Assembly (includes Defrost Thermistor)   (Replaces: W11559742)		Appelez-nous	-
6	W11807516		Heat Shield Assembly   (Replaces: W11569938)		Appelez-nous	-
7	W11787130		Thermistor, Freezer Temperature   (Replaces: W11627842)		Appelez-nous	-
8	W11798506		Defrost Heater   (Replaces: W11560604)		Appelez-nous	-
9	W11798508		Defrost Heater Clip   (Replaces: W11365795)		Appelez-nous	-
10	W11798510		Air Dam (left Hand)   (Replaces: W11563438)		Appelez-nous	-
11	W11798511		Air Dam (right Hand)   (Replaces: W11563437)		Appelez-nous	-
