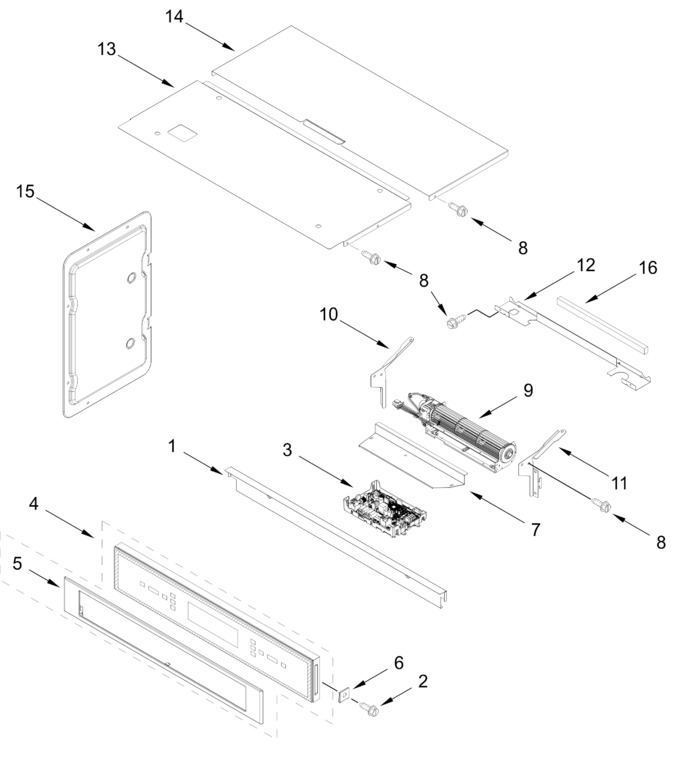

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11817546		Cover, 27 In Compliment   (Replaces: W10493256)		Appelez-nous	-
2	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
3	W11754857		Appliance Manager, Fittipaldi   (Replaces: W11734901)				$ 405.10
4	W11788193		Control Panel Assembly (stainless)		Appelez-nous	-
5	W11197499		Skin, Control Panel (stainless)			Immediately	$ 361.78
6	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
7	W10681157		Cover, Combo Blower		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10655462		Bracket, Blower (right)		Appelez-nous	-
12	W11754858		Divider, Chassis Back   (Replaces: W11664750)		Appelez-nous	-
13	W11783649		Cover, Top Front Chassis   (Replaces: W11646293)		Appelez-nous	-
14	W11037652		Cover, Top Back Wifi Chassis		Appelez-nous	-
15	W11754860		Panel, Combo Chassis Side   (Replaces: W11659057)		Appelez-nous	-
16	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
	W11754863		Harness, Fan And Turntable   (Replaces: W11476496)		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11754866		Harness, Main Upper Mwo   (Replaces: W11476494)			Immediately	$ 267.48
	W11754869		Bag, Hardware   (Replaces: W11705814)		Appelez-nous	-
	W11754867		Harness, Main Lower Mwo   (Replaces: W11706181)				$ 146.29
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	4448664		Clamp, Conduit				$ 21.41
	W11226264		Strap, Ground		Appelez-nous	-
	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
	W11754862		Harness, Main   (Replaces: W11476491)		Appelez-nous	-
	4450800		Screw, Grounding				$ 13.47
	W11754864		Harness, Inverter   (Replaces: W11476511)		Appelez-nous	-
	W11754868		Harness, Signal   (Replaces: W11476492)		Appelez-nous	-
	W11754865		Harness, Comm And Eol   (Replaces: W11476493)		Appelez-nous	-
