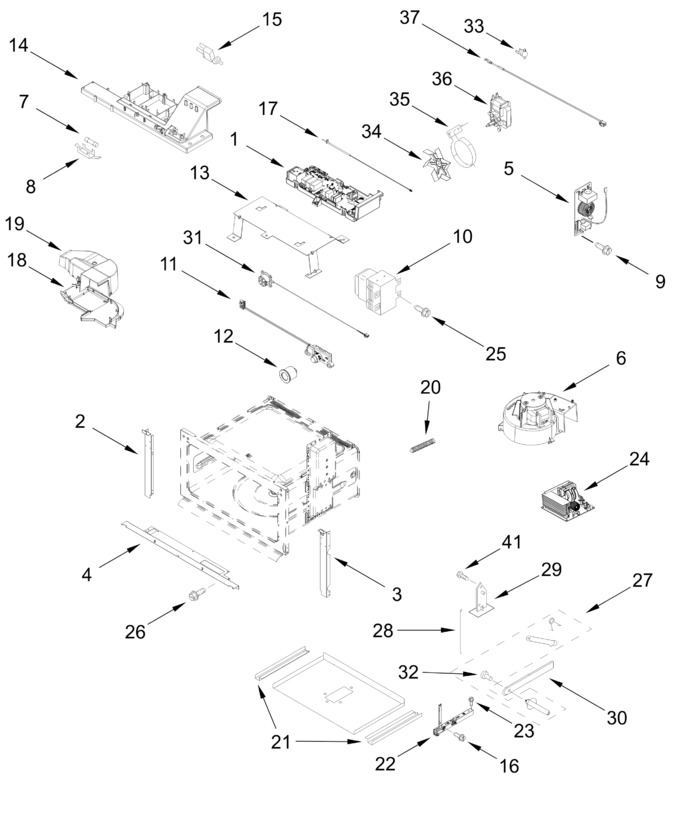

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11754874 | Appliance Manager (Replaces: W11693182) |
|
$ 289.67 | |||||
| 2 | 461967017511 | . Trim, Side (left) |
|
- | |||||
| 3 | W11044584 | Trim, Side (right) |
|
- | |||||
| 4 | W11334717 | Vent, Top |
|
Immediately | $ 62.42 | ||||
| 5 | W11758693 | Filter, Noise (Replaces: W11755010) |
|
$ 43.11 | |||||
| 6 | W11344874 | Cooling Fan Assembly (Replaces: W11131760) |
|
Immediately | $ 191.74 | ||||
| 7 | W11188752 | . Fuse (Replaces: 241908600053) |
|
Immediately | $ 17.37 | ||||
| 8 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 87.31 | |||||
| 9 | W11807875 | . Screw (Replaces: 461967825341) |
|
- | |||||
| 10 | W11578959 | Magnetron (Replaces: W11504545) |
|
Immediately | $ 123.62 | ||||
| 11 | W11754877 | Light Module, Led (Replaces: W11692431) |
|
$ 95.50 | |||||
| 12 | W11754878 | Lens Assy, Led (Replaces: W11692409) |
|
$ 39.95 | |||||
| 13 | W11754879 | Tray, Electronic (Replaces: W11645761) |
|
- | |||||
| 14 | 461967754821 | . Duct, Magnetron |
|
$ 87.16 | |||||
| 15 | 461967842541 | . Thermoactuator |
|
$ 72.29 | |||||
| 16 | W11690594 | . Screw (shoulder) (Replaces: 461967825781) |
|
$ 14.79 | |||||
| 17 | W11754880 | Probe, Temperature (Replaces: W11692542) |
|
$ 54.25 | |||||
| 18 | W11646906 | Housing, Lower Inverter (Replaces: W11591018) |
|
- | |||||
| 19 | W11646907 | Housing, Upper Inverter (Replaces: W11591019) |
|
$ 82.38 | |||||
| 20 | W11715912 | . Spring, Release Rod (Replaces: 423107570871) |
|
Immediately | $ 8.27 | ||||
| 21 | 8205707 | . Support, Bottom (Replaces: 461967008461) |
|
Immediately | $ 68.79 | ||||
| 22 | W11732689 | Hinge, Door (Replaces: W11681073) |
|
$ 102.84 | |||||
| 23 | 461967825601 | . Screw |
|
- | |||||
| 24 | W11578579 | Inverter (Replaces: W11504539) |
|
Immediately | $ 259.99 | ||||
| 25 | 461967825971 | . Screw |
|
- | |||||
| 26 | 461967825321 | . Screw |
|
$ 12.13 | |||||
| 27 | WPW10128850 | Sliding Arm Assembly (Replaces: W10128850) |
|
Immediately | $ 142.08 | ||||
| 28 | W11700292 | . Spring, Torsion (Replaces: 461967570351) |
|
$ 72.30 | |||||
| 29 | W11684510 | . Support (Replaces: 461967750494) |
|
Immediately | $ 15.52 | ||||
| 30 | W11607070 | Arm, Sliding (Replaces: W11213889) |
|
$ 28.96 | |||||
| 31 | W11754875 | Sensor, Humidity (Replaces: W11647874) |
|
$ 65.70 | |||||
| 32 | WPW10128850 | . Bushing (Replaces: 461967510191) |
|
Immediately | $ 142.08 | ||||
| 33 | W11607085 | . Sensor, Convection (Replaces: 423107845441) |
|
Immediately | $ 44.42 | ||||
| 34 | W11512064 | Blade, Fan (Replaces: W11453899) |
|
Immediately | $ 171.35 | ||||
| 35 | WPW10493735 | . Heater, Convection Element (Replaces: 461967848711) |
|
Immediately | $ 110.49 | ||||
| 36 | W11534564 | Motor, Convection Fan (Replaces: W11233698) |
|
Immediately | $ 105.70 | ||||
| 37 | W11754876 | Thermostat, Magnetron (Replaces: W11692611) |
|
Immediately | $ 111.45 |
