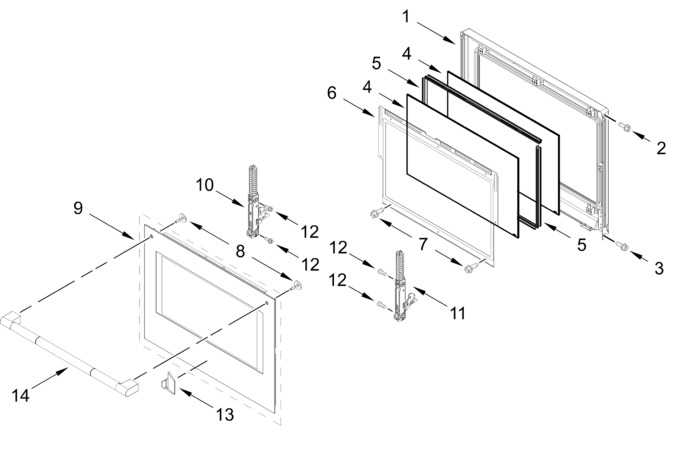

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11598186		Liner Assembly   (Replaces: W11302593)				$ 371.00
2	7101P37560		Screw		Appelez-nous	-
3	W11617225		Screw   (Replaces: W11290045)				$ 14.77
4	WPW10284902		Glass, Inner   (Replaces: W10618123)				$ 229.81
5	W11736672		Spacer, Air Divider   (Replaces: W11647161)			Immediately	$ 54.06
6	W11598188		Retainer, Air Divider Glass   (Replaces: W11204277)				$ 81.84
7	7101P42660		Screw		Appelez-nous	-
8	W11749091		Screw (black)   (Replaces: W11707001)				$ 12.34
9	W11794024		Outer Door Assembly (stainless)		Appelez-nous	-
10	W11817103		Hinge, Door (left)   (Replaces: W11794048)		Appelez-nous	-
11	W11817104		Hinge, Door (right)   (Replaces: W11794049)		Appelez-nous	-
12	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
13	W11320231		Badge (stainless)   (Replaces: W11238657)				$ 110.78
14	W11349396		Door Handle Assembly (stainless)   (Replaces: W11251201)		Appelez-nous	-
