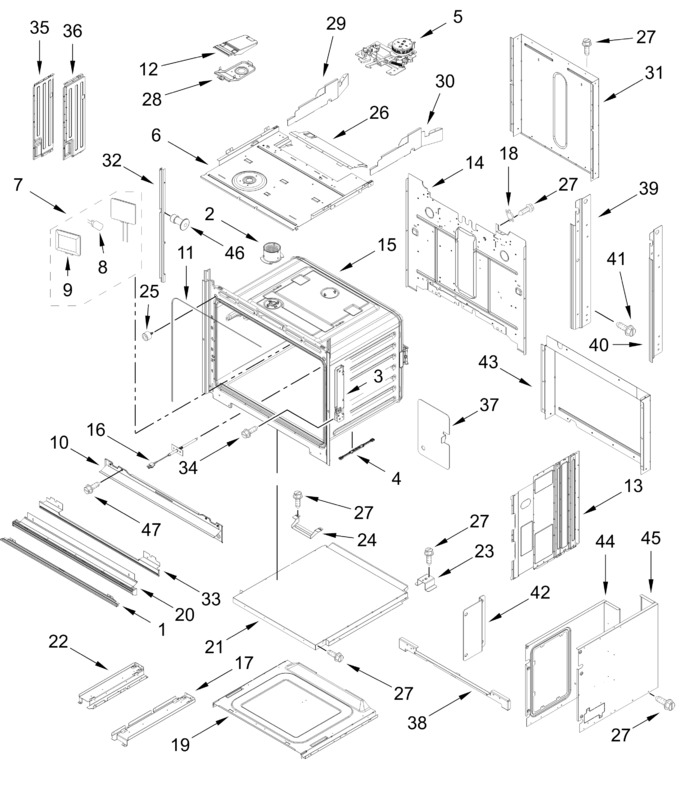

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11729862		Deflector, Bottom Vent (stainless, 27 Inch)		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 89.40
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 18.14
5	W11811612		Latch, Motorized   (Replaces: W11795407)			Immediately	$ 69.86
6	W11846526		Top, Chassis   (Replaces: W11694205)		Appelez-nous	-
7	W11292252		Light Assembly   (Replaces: W11205574)			Immediately	$ 107.48
8	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
9	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
10	W11783650		Center Vent Assembly   (Replaces: W11736635)		Appelez-nous	-
11	W11608109		Gasket, Cavity				$ 70.97
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 80.99
14	ARICB6C68D1C295DC58D5B4CADE19064E44		Back, Chassis (not Serviced)		Appelez-nous	-
15	ARIF1DCB018B2324CAD9D04009CD738647B		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11758691		Probe, Sensor   (Replaces: W11685697)				$ 33.87
17	W10283021		Support, Base (right)		Appelez-nous	-
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11598139		Base, Chassis   (Replaces: W11244454)		Appelez-nous	-
20	W11817102		Bottom Vent Assembly (stainless)   (Replaces: W11791421)		Appelez-nous	-
21	W11244446		Duct, Bottom Chassis				$ 70.25
22	W11818384		Support, Base (left)   (Replaces: W11738531)		Appelez-nous	-
23	W11135135		Support, Air Channel				$ 36.15
24	W11731183		Spacer, Bottom Chassis Duct   (Replaces: W11135125)				$ 38.85
25	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 23.37
26	W11818416		Deflector, Fan   (Replaces: W11729909)		Appelez-nous	-
27	7101P42660		Screw		Appelez-nous	-
28	W11256423		Base, Vent Exhaust		Appelez-nous	-
29	W11186391		Deflector, Chassis (left)		Appelez-nous	-
30	W11186398		Deflector, Chassis (right)		Appelez-nous	-
31	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
32	W11235457		Trim, Left Side (black)				$ 79.72
33	W11714647		Trim, Bottom Vent (black)   (Replaces: W11624688)				$ 89.89
34	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
35	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 74.06
36	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 74.06
37	W11533682		Cover, Wifi		Appelez-nous	-
38	W10283023		Support, Crossbar		Appelez-nous	-
39	W11627410		Siderail, Combo (left)				$ 61.70
40	W11627411		Siderail, Combo (right)				$ 59.61
41	7101P63360		Screw (black)		Appelez-nous	-
42	W10283025		Side, Bracket		Appelez-nous	-
43	W11171004		Cover, Combo Chassis Back Duct				$ 74.55
44	W11754871		Side, Combo Chassis (left)   (Replaces: W11717606)		Appelez-nous	-
45	W11244451		Side, Combo Chassis (right)		Appelez-nous	-
46	W11754870		Rivet (black)   (Replaces: W11696855)		Appelez-nous	-
47	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
	W11688568		Insulation, Wrap   (Replaces: W11244474)		Appelez-nous	-
	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 89.29
	W11235458		Trim, Right Side (black)				$ 79.72
	ARIC3896A09BBAECADB12C59FB914B3A715		Insulation (not Illustrated)		Appelez-nous	-
	W11244475		Insulation, Back		Appelez-nous	-
