Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI2948F547D7C4C1B6CA0878B04EDFC4EF Cabinet (not A Servicable Part) Appelez-nous -
2 W10854958 Screw   (Replaces: 12990302) Special Order $ 7.90

3 W11845153 Pivot Block (grey)   (Replaces: W11808293) Appelez-nous -
4 W11252188 Double Lock Ring Special Order $ 20.85

5 W11815977 Callisto Control Board   (Replaces: W11837354) Appelez-nous -
6 W11807499 Unit Cover Assembly   (Replaces: W11797551) Appelez-nous -
7 W11791081 Roller Bracket Assembly (left Hand)   (Replaces: W11561088) Special Order $ 80.20

8 W11791174 Roller Bracket Assembly (right Hand)   (Replaces: W11561087) Special Order $ 80.20

9 WP489474 Screw   (Replaces: 12990501) In-Stock Immediately $ 8.55

10 W11791043 Top Hinge Assembly (left Hand)   (Replaces: W11342589) Appelez-nous -
11 W11819838 Screw   (Replaces: W11729359) Appelez-nous -
12 W11824298 Hinge Cover Assembly (lh, Includes Reed Switch And Foil)   (Replaces: W11799814) Appelez-nous -
13 W11842408 Hinge Cover Assembly (rh, Includes Switch, Sensor And Wifi Control)   (Replaces: W11799805) Appelez-nous -
14 W11845464 Screw   (Replaces: W11438184) Appelez-nous -
15 W11845148 Center Hinge Assembly (left Hand)   (Replaces: W11553576) Appelez-nous -
16 W11845149 Center Hinge Assembly (right Hand)   (Replaces: W11554904) Appelez-nous -
17 WP694091 Screw   (Replaces: 694091) Special Order $ 7.55

18 W11456069 Clamp, Tube   (Replaces: M0108107) In-Stock Immediately $ 22.40

19 W11785649 Reed Switch   (Replaces: W11548358) Special Order $ 49.08

20 3400524 Screw   (Replaces: W10142287) Special Order $ 13.28

21 W11785608 Air Separator Assembly   (Replaces: W11681218) Appelez-nous -
22 W11790663 Air Bottom Separator   (Replaces: W11676389) Appelez-nous -
23 W11785609 Air Separator Assembly (cabinet)   (Replaces: W11681219) Appelez-nous -
24 W11835063 Water Dispenser Tube (cabinet)   (Replaces: W11768972) Appelez-nous -
25 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 8.05

26 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 7.30

27 W11835059 Cabinet Water Fill Tube   (Replaces: W11768988) Appelez-nous -
28 W11785633 Lid Hv Assembly   (Replaces: W11701312) Appelez-nous -
29 W10705239 Door Wire Retainer In-Stock Immediately $ 51.64

30 W11790671 Triple Valve Bracket   (Replaces: W11541794) Appelez-nous -
31 W11795362 Dual Water Valve   (Replaces: W11454781) Special Order $ 99.40

32 W11795510 Inlet Tube   (Replaces: W11618006) Appelez-nous -
33 W11214483 Screw (door Wire Ground)   (Replaces: 12992601) Special Order $ 14.72

W11786665 Top Hinge Assembly (right Hand)   (Replaces: W11354191) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

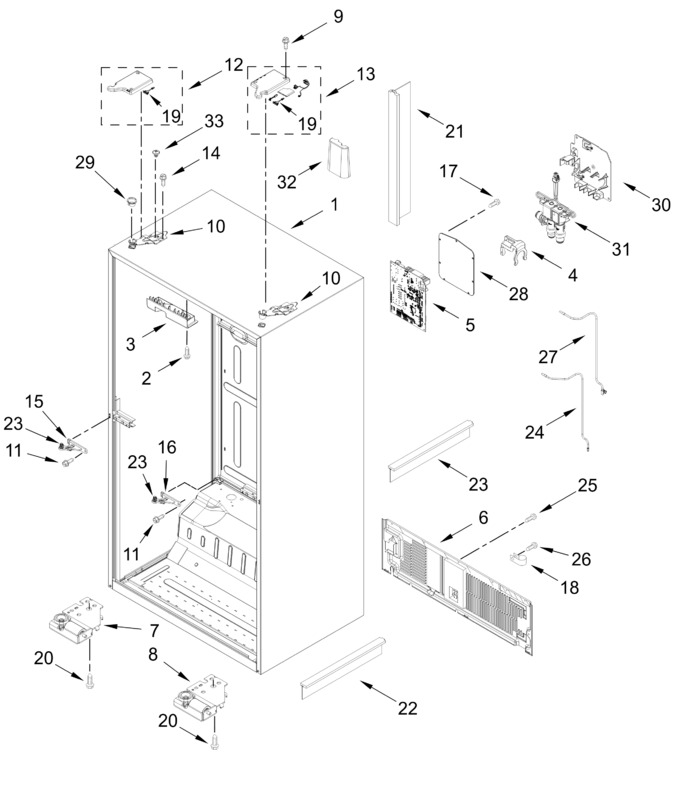

Diagram for JFFCCE72SL01
