Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11846177 Left Door Assembly (stainless, Incudes Door Gasket) Appelez-nous -
2 W11841525 Right Door Assembly (stainless, Includes Door Gasket) Appelez-nous -
3 WP8281136 Screw   (Replaces: 8281136) Special Order $ 7.30

4 W11840236 Door Stopper (black, Left Hand)   (Replaces: W11562609) Appelez-nous -
5 W11840234 Door Stopper (black, Right Hand)   (Replaces: W11562612) Appelez-nous -
6 W11840239 Mullion Assembly   (Replaces: W11623119) Appelez-nous -
7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

8 W11254134 Door Handle (stainless)   (Replaces: W11238822) Special Order $ 407.26

9 W11840247 Bottom Bin (left Hand)   (Replaces: W11657266) Appelez-nous -
10 W11840243 Gallon Bin (right Hand)   (Replaces: W11657262) Appelez-nous -
11 W11840246 Bottom Bin (right Hand)   (Replaces: W11657264) Appelez-nous -
12 W11449276 Screw   (Replaces: W11328753) In-Stock Immediately $ 15.45

13 W11845319 Ice Door Trivet   (Replaces: W11657272) Appelez-nous -
14 W11845318 Dispenser Bin (left Hand)   (Replaces: W11657269) Appelez-nous -
15 W11787853 Door Supply Duct Assembly   (Replaces: W11740632) Appelez-nous -
16 W11787790 Return Duct Assembly   (Replaces: W11740633) Appelez-nous -
17 W11840237 Door Closer (left Hand)   (Replaces: W11550700) Appelez-nous -
18 W11840235 Door Closer (right Hand)   (Replaces: W11550699) Appelez-nous -
19 W11818599 Supply Gasket   (Replaces: W11611713) Appelez-nous -
20 W11842372 Dispenser Water Tube   (Replaces: W11768994) Appelez-nous -
21 W11793915 Reed Switch   (Replaces: W11553901) Special Order $ 63.22

22 W11832357 Refrigerator Door Gasket (grey)   (Replaces: W11586646) Appelez-nous -
23 W11845316 Temperature Control Ui   (Replaces: W11582129) Appelez-nous -
24 W11787121 Retainer Plug   (Replaces: W11719970) Appelez-nous -
25 W11845317 Ice Door Assembly   (Replaces: W11567180) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

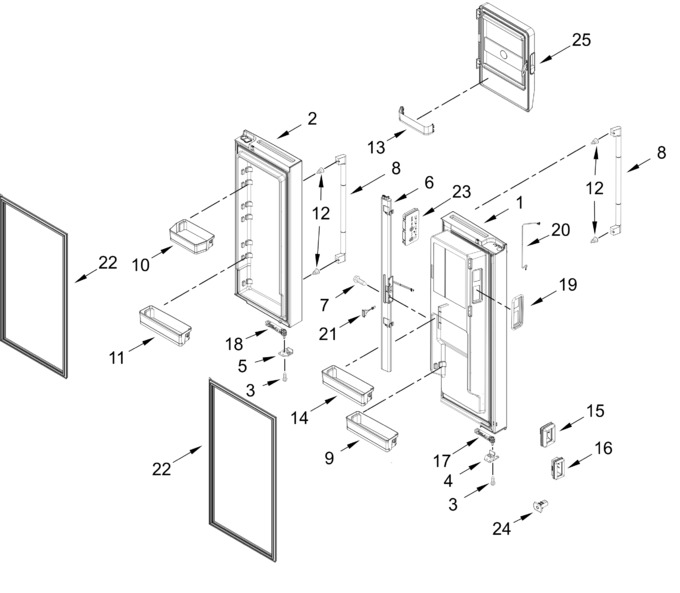

Diagram for JFFCCE72SL01
