Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11797003 Freezer Door Assembly (stainless, Includes Door Gasket) Appelez-nous -
2 W11254135 Door Handle (stainless)   (Replaces: W11238823) Special Order $ 449.09

3 W11449276 Screw   (Replaces: W11328753) In-Stock Immediately $ 15.45

4 W11787217 Shaft Rack Assembly (bottom)   (Replaces: W11611561) Appelez-nous -
5 W11845303 Fc Adapter Assembly (grey, Left Side)   (Replaces: W11578713) Appelez-nous -
6 W11840148 Bottom Basket Assembly   (Replaces: W11632629) Appelez-nous -
7 WP67006908 Screw   (Replaces: 12990518) In-Stock Immediately $ 8.78

8 W11845302 Top Basket Assembly (grey)   (Replaces: W11578716) Appelez-nous -
9 WPW10277361 Gear Collar   (Replaces: W10277361) Special Order $ 12.09

10 W11787215 Slider Basket   (Replaces: W11632631) Special Order $ 25.75

11 W11840146 Bottom Basket Divider   (Replaces: W11727687) Appelez-nous -
12 W11816126 Screw   (Replaces: W11113841) Appelez-nous -
13 W11845301 Middle Basket Assembly (grey)   (Replaces: W11579303) Appelez-nous -
14 W11840145 Adapter Safety Clip   (Replaces: W11632622) Appelez-nous -
15 W11803538 Freezer Door Gasket (grey)   (Replaces: W11586644) Appelez-nous -
16 W11798520 Pan Support   (Replaces: W11604038) Appelez-nous -
17 W11807405 Pan Roller   (Replaces: W10838061) Appelez-nous -
18 W10839805 Roller Axle Appelez-nous -
19 W11793915 Reed Switch   (Replaces: W11553901) Special Order $ 63.22

20 W11840149 Reed Switch Holder   (Replaces: W11658594) Appelez-nous -
21 W11830079 Fc Adapter Assembly (left Hand)   (Replaces: W11632439) Appelez-nous -
22 W11830079 Fc Adapter Assembly (right Hand)   (Replaces: W11632447) Appelez-nous -
W11845304 Fc Adapter Assembly (grey, Right Side)   (Replaces: W11579071) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

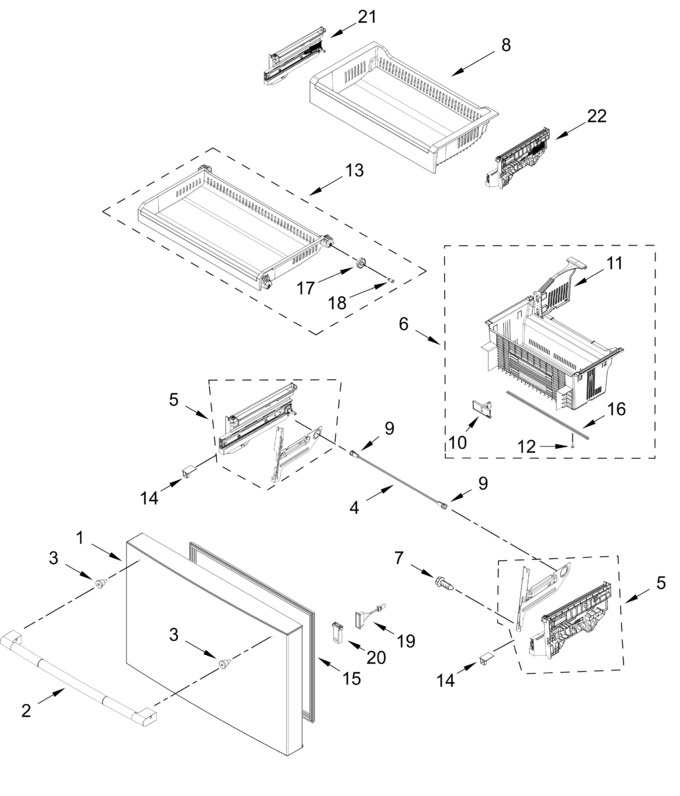

Diagram for JFFCCE72SL01
