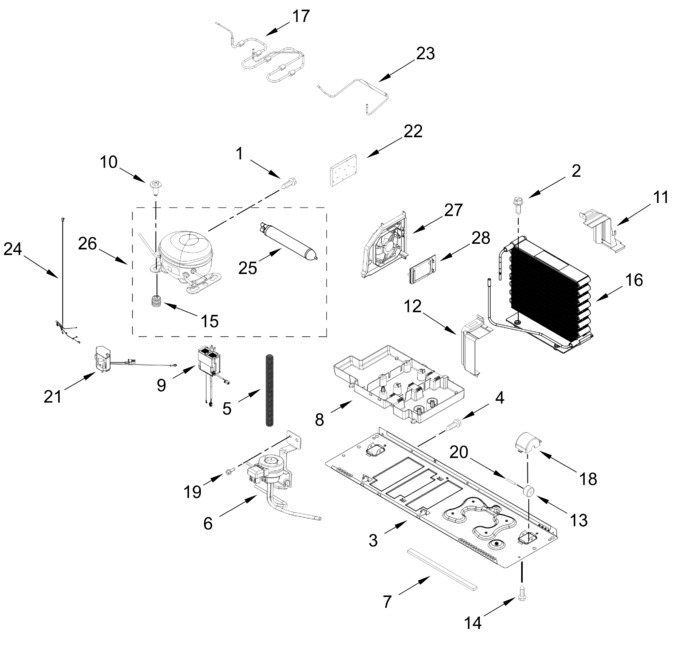

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
2	W10820084		Screw		Appelez-nous	-
3	W11787438		Compressor Baseplate   (Replaces: W11543386)		Appelez-nous	-
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
5	W11787385		Drain Tube Extension   (Replaces: W11559668)				$ 62.27
6	W11832348		3-way Valve Assembly   (Replaces: W11558772)		Appelez-nous	-
7	W11807409		Baseplate Gasket   (Replaces: W11642492)		Appelez-nous	-
8	W11787346		Water Tray   (Replaces: W11678106)		Appelez-nous	-
9	W11835060		Inverter Box Assembly   (Replaces: W11786369)		Appelez-nous	-
10	W11417341		Screw				$ 14.07
11	W11807413		Rear Shroud   (Replaces: W11611636)		Appelez-nous	-
12	W11807406		Front Shroud   (Replaces: W11613272)		Appelez-nous	-
13	W10774846		Roller				$ 90.76
14	3400524		Screw   (Replaces: W10142287)				$ 13.28
15	W11678963		Grommet, Compressor   (Replaces: W10806346)				$ 8.51
16	W11787355		Condenser Assembly   (Replaces: W11668494)		Appelez-nous	-
17	W11787845		Precooler Assembly   (Replaces: W11610529)		Appelez-nous	-
18	W11787966		Roller Cover   (Replaces: W11613273)		Appelez-nous	-
19	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
20	WPW10285005		Axle, Roller   (Replaces: W10285005)				$ 16.77
21	W11823809		Inverter Connector Cover   (Replaces: W11682571)		Appelez-nous	-
22	W11553819		Sound Insulation   (Replaces: 2215468)			Immediately	$ 14.77
23	W11787358		Suction Tube Assembly   (Replaces: W11614556)		Appelez-nous	-
24	W11842354		Unit Wire Assembly (includes Power Cord)   (Replaces: W11781531)		Appelez-nous	-
25	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
26	W11803377		Compressor   (Replaces: W11754926)			Immediately	$ 304.42
27	W11787365		Condenser Fan Assembly   (Replaces: W11613932)				$ 95.85
28	W11787124		Retainer Bracket   (Replaces: W11684787)		Appelez-nous	-
	ARIDB5BB2DB0DC0B155401A5AB1451BE2DB		65 Grams (r600a)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
