Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11670528 Control Panel Assembly (stainless)   (Replaces: W11639725) Special Order $ 1,077.08

2 W10491987 Block, Foam   (Replaces: 4451758) In-Stock Immediately $ 8.14

3 W11261165 Appliance Manager, Copernicus (with Power Supply)   (Replaces: W11253186) In-Stock Immediately $ 349.13

4 W11754860 Panel, Combo Chassis Side   (Replaces: W11659057) Appelez-nous -
5 W11598119 Blower   (Replaces: W11397930) In-Stock Immediately $ 388.25

6 WP4450118 Nut   (Replaces: 4450118) Special Order $ 8.78

7 W11602625 Screw (black)   (Replaces: W11339492) Special Order $ 14.72

8 7101P42660 Screw Appelez-nous -
9 W10681157 Cover, Combo Blower Appelez-nous -
10 W10655463 Bracket, Blower (left) Appelez-nous -
11 W10655462 Bracket, Blower (right) Appelez-nous -
12 W11754858 Divider, Chassis Back   (Replaces: W11664750) Appelez-nous -
13 W10318159 Chassis, Cover Top Front 27 In Appelez-nous -
14 W11037652 Cover, Top Back Wifi Chassis Appelez-nous -
16515 Clip, Harness   (Replaces: 313438) Special Order $ 20.53

W11356990 Harness, Communication Special Order $ 224.43

W11602626 Bag, Hardware   (Replaces: W11394923) Special Order $ 23.47

W11727826 Harness, Door Latch   (Replaces: W11264646) Special Order $ 61.80

4448664 Clamp, Conduit Special Order $ 21.41

4450800 Screw, Grounding Special Order $ 13.47

W11256629 Harness, Signal Appelez-nous -
W11847083 Harness, Main   (Replaces: W11666060) Appelez-nous -
W11555848 Harness, Input Appelez-nous -
W11356991 Harness, Ground Console Combo Appelez-nous -
ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
W11539494 Harness, Inverter Special Order $ 43.39

W11578580 Jumper Harness, Communication   (Replaces: W11539527) Special Order $ 30.24

W11546965 Harness, Fan And Turntable   (Replaces: W11454022) Special Order $ 78.88


    View Diagram in Separate Window     Print Icon   Print Part List

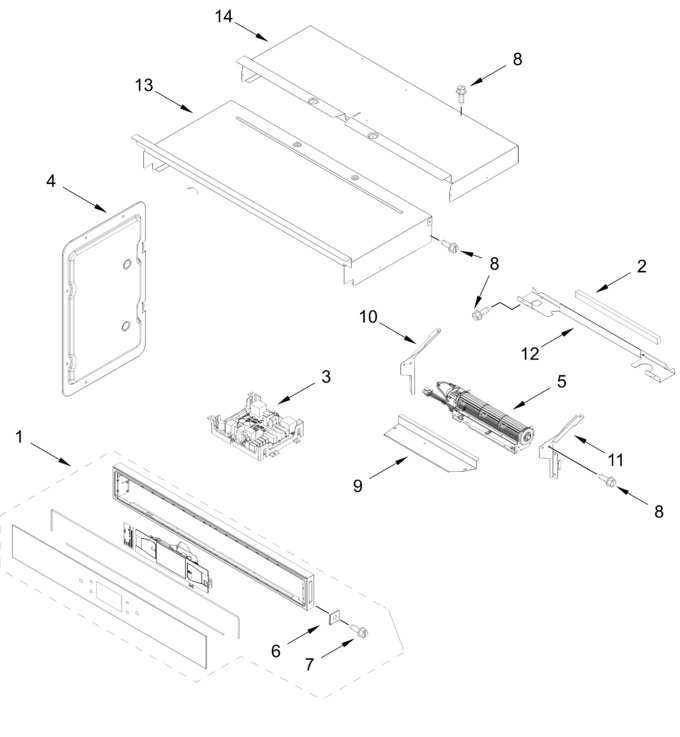

Diagram for WOEC7027PZ05
