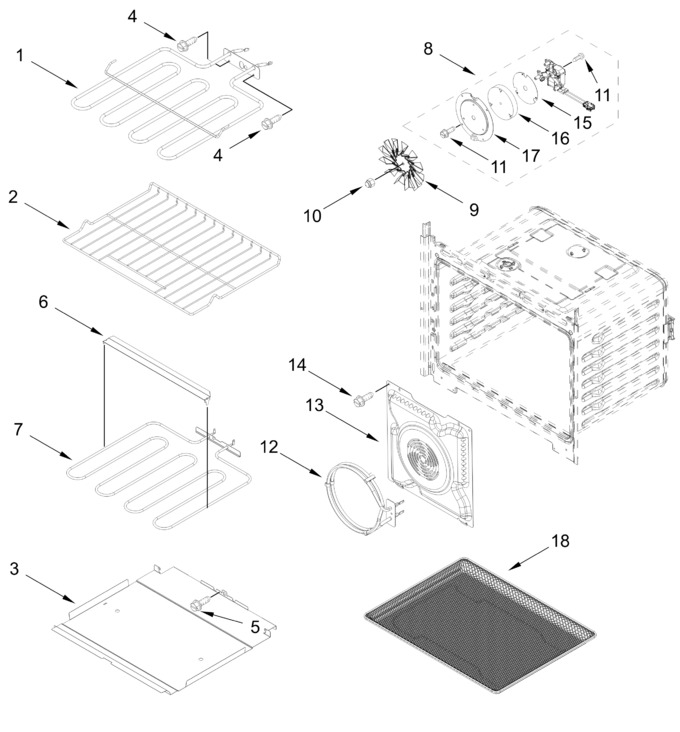

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11617232		Element, Broil   (Replaces: W11238160)				$ 131.38
2	WPW10317431		Rack, Oven   (Replaces: W10317431)				$ 132.99
3	W10318198		Tray, Hidden Bake				$ 195.83
4	7101P43460		Screw		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10282957		Crossbar, Hidden Bake Tray				$ 47.47
7	W11545804		Element, Bake   (Replaces: W11292248)			Immediately	$ 102.53
8	W11617227		Convect Motor Assembly   (Replaces: W11398058)			Immediately	$ 159.60
9	W11548753		Blade, Fan   (Replaces: W11425715)			Immediately	$ 157.63
10	W11548755		Nut, Acorn (left Hand Thread)   (Replaces: W11433702)				$ 15.38
11	W10850807		Screw   (Replaces: W10720084)				$ 7.77
12	WPW10260248		Ring, Element   (Replaces: W10260248)				$ 309.67
13	W10359278		Baffle, Convection				$ 249.22
14	WP74003976		Screw   (Replaces: W10906658)				$ 7.55
15	W11602629		Plate, Convect Motor   (Replaces: W11251715)		Appelez-nous	-
16	W11706806		Insulation, Convect Motor   (Replaces: W11251716)		Appelez-nous	-
17	W11617229		Cover, Convect Plate   (Replaces: W11398057)		Appelez-nous	-
18	W11692811		Basket, Airfry   (Replaces: W11661815)			Immediately	$ 117.69
