Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11819303 Cover, Connector   (Replaces: 8285593) Appelez-nous -
2 W11240525 Tube, Vent   (Replaces: W11085298) Special Order $ 25.54

3 W11712405 Receiver, Hinge (left)   (Replaces: W11239070) In-Stock Immediately $ 89.40

4 W11598152 Spacer, Base   (Replaces: W11558603) In-Stock Immediately $ 18.14

5 W11811612 Latch, Motorized   (Replaces: W11795407) In-Stock Immediately $ 69.86

6 W11846526 Top, Chassis   (Replaces: W11694205) Appelez-nous -
7 W11292252 Light Assembly   (Replaces: W11205574) In-Stock Immediately $ 107.48

8 WPW10472384 Bulb, Light   (Replaces: W10472384) In-Stock Immediately $ 92.48

9 WPW10519866 Lens, Light   (Replaces: W10472386) Special Order $ 96.33

10 W11783650 Center Vent Assembly   (Replaces: W11736635) Appelez-nous -
11 W11608109 Gasket, Cavity Special Order $ 70.97

12 W11256424 Cover, Vent Exhaust Appelez-nous -
13 W11165274 Side, Chassis Special Order $ 80.99

14 ARICB6C68D1C295DC58D5B4CADE19064E44 Back, Chassis (not Serviced) Appelez-nous -
15 ARIF1DCB018B2324CAD9D04009CD738647B Liner, Oven (not Serviceable) Appelez-nous -
16 W11598120 Probe, Sensor   (Replaces: W11346074) In-Stock Immediately $ 41.75

17 W11818416 Deflector, Fan   (Replaces: W11729909) Appelez-nous -
18 WP4449751 Thermostat (tod)   (Replaces: 4449751) In-Stock Immediately $ 111.84

19 W11598139 Base, Chassis   (Replaces: W11244454) Appelez-nous -
20 W11658445 Bottom Vent Assembly (stainless)   (Replaces: W11467824) Special Order $ 236.37

21 W11244446 Duct, Bottom Chassis Special Order $ 70.25

22 W11818384 Support, Base (left)   (Replaces: W11738531) Appelez-nous -
23 W11135135 Support, Air Channel Special Order $ 36.15

24 W11731183 Spacer, Bottom Chassis Duct   (Replaces: W11135125) Special Order $ 38.85

25 W11598125 Bumper And Screw   (Replaces: W11166315) Special Order $ 23.37

26 W10283021 Support, Base (right) Appelez-nous -
27 7101P42660 Screw Appelez-nous -
28 W11256423 Base, Vent Exhaust Appelez-nous -
29 WPY706189 Screw   (Replaces: W11249635) In-Stock Immediately $ 7.55

30 W11598150 Cover, Suction (left)   (Replaces: W11167419) Special Order $ 74.06

31 W11598151 Cover, Suction (right)   (Replaces: W11186675) Special Order $ 74.06

32 W11235457 Trim, Left Side (black) Special Order $ 79.72

33 W11754870 Rivet (black)   (Replaces: W11696855) Appelez-nous -
34 W11186391 Deflector, Chassis (left) Appelez-nous -
35 W11186398 Deflector, Chassis (right) Appelez-nous -
36 W11714647 Trim, Bottom Vent (black)   (Replaces: W11624688) Special Order $ 89.89

37 W11134657 Duct, Lower Chassis Back Appelez-nous -
38 WPW10254050 Screw   (Replaces: W10254050) Special Order $ 9.22

39 W11533682 Cover, Wifi Appelez-nous -
W11235458 Trim, Right Side (black) Special Order $ 79.72

W11712406 Receiver, Hinge (right)   (Replaces: W11239072) Special Order $ 89.29

W11688568 Insulation, Wrap   (Replaces: W11244474) Appelez-nous -
W11244475 Insulation, Back Appelez-nous -
ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

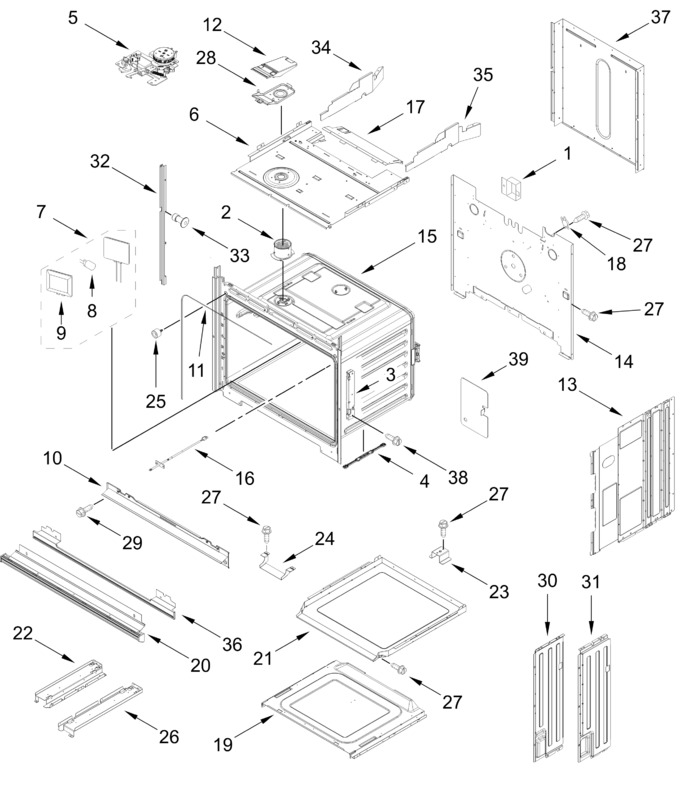

Diagram for WOEC7027PZ05
