SELECT A DIAGRAM

Cabinet And Stirrer Parts


Control Panel Parts


Internal Microwave Parts


Internal Oven Parts


Microwave Door Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Top Venting Parts

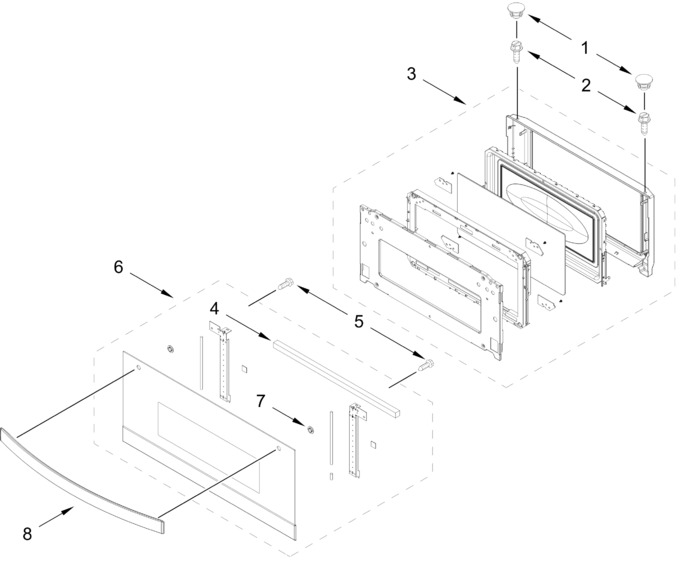

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	7101P33860		Screw		Appelez-nous	-
3	W11846527		Inner Door Assembly   (Replaces: W11610663)		Appelez-nous	-
4	W10359769		Foam, Door Handle				$ 14.76
5	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
6	W11654092		Door Assembly (stainless)   (Replaces: W11500266)		Appelez-nous	-
7	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
8	W11648757		Handle, Door (stainless)   (Replaces: W11532601)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
