Chassis Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

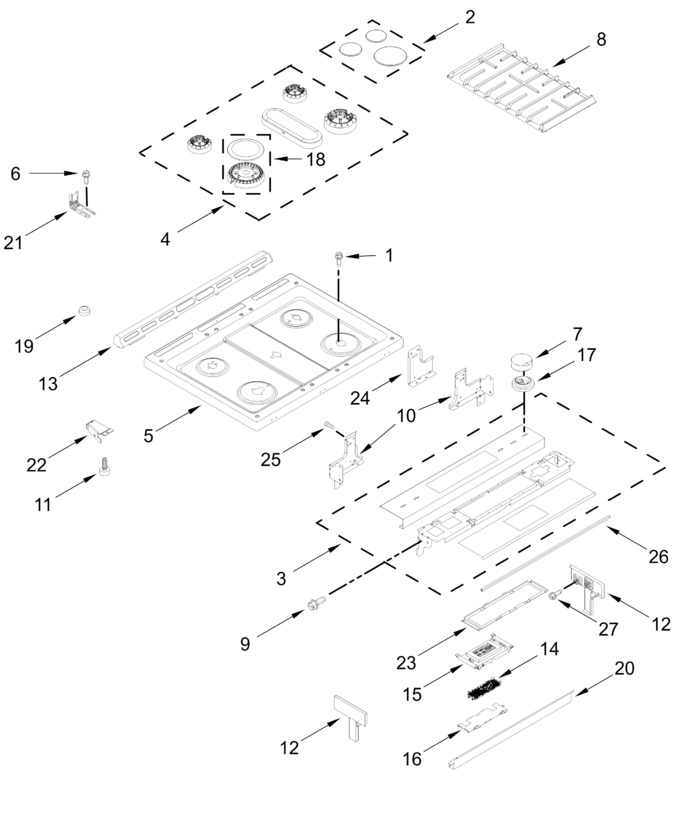

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 2 | W11834855 | Burner Cap Kit (black) (Replaces: W11734528) |
|
- | |||||
| 3 | W11844203 | Console Assembly, (with Overlay, Stainless) (Replaces: W11829989) |
|
- | |||||
| 4 | W11834876 | Burner Kit (set Of 5) (Replaces: W11367105) |
|
Immediately | $ 286.05 | ||||
| 5 | W11733868 | Cooktop-gas (stainless) (Replaces: W11316217) |
|
- | |||||
| 6 | 7101P48560 | Screw, Anti-tip |
|
- | |||||
| 7 | W11647016 | Knob (stainless) (Replaces: W11592981) |
|
$ 43.89 | |||||
| 8 | W11241056 | Grate Kit (black, Set Of 2) (Replaces: W11188538) |
|
$ 409.88 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 10 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 30.05 | |||||
| 11 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 12 | W10557751 | Endcap (stainless, Left) |
|
$ 168.85 | |||||
| 13 | W10577782 | Vent, Trim (stainless) |
|
$ 143.57 | |||||
| 14 | W11844202 | Control, Mrc2 (Replaces: W11822051) |
|
- | |||||
| 15 | W11120573 | Display, Assembly (Replaces: W10759324) |
|
Immediately | $ 512.12 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 17 | W11752207 | Bezel (stainless) (Replaces: W11592976) |
|
$ 57.51 | |||||
| 18 | W11443594 | Burner Kit (includes Cap And Spreader) (Replaces: W11366282) |
|
Immediately | $ 165.27 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 20 | W10565662 | Panel, Lower Console (stainless) |
|
$ 209.37 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 23 | W10557780 | Bracket , Control |
|
$ 36.68 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 25 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 26 | W11732692 | Cooktop Gasket (Replaces: W11687826) |
|
- | |||||
| 27 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| W10580229 | Wire, Ground |
|
$ 38.22 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| W10162252 | Brace, Corner (right) |
|
$ 78.59 | ||||||
| W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 75.29 | |||||
| W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 | |||||
| W10557754 | Endcap (stainless, Right) |
|
$ 168.85 | ||||||
| W11198972 | Harness, Bake And Broil (Replaces: W10754419) |
|
$ 35.84 | ||||||
| W11563527 | Bracket, Support (right) |
|
- | ||||||
| W11635421 | Harness, Main |
|
$ 180.64 | ||||||
| W11635422 | Harness, Bake And Warm Drawer |
|
$ 38.51 |
