Chassis Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

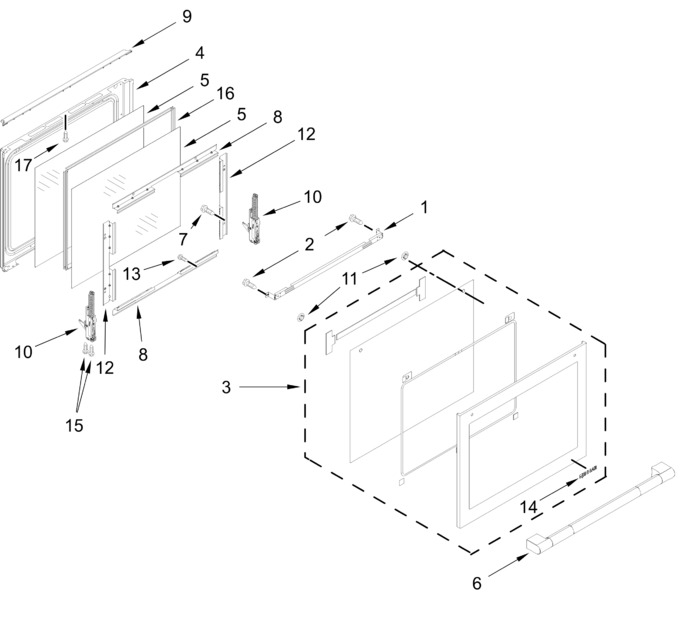

| 1 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 39.92 | ||||
| 2 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 3 | W11647013 | Outer Door Assembly (stainless) (Replaces: W11618950) |
|
$ 439.96 | |||||
| 4 | W11844175 | Liner, Door (Replaces: W11842294) |
|
- | |||||
| 5 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 171.17 | |||||
| 6 | W11647008 | Door Handle (stainless) (Replaces: W11600908) |
|
Immediately | $ 392.10 | ||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 8 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 177.21 | ||||
| 9 | W11025120 | Scoop, Door (stainless) (Replaces: W10551024) |
|
$ 123.01 | |||||
| 10 | W11647009 | Hinge, Slow Close (Replaces: W11592970) |
|
Immediately | $ 82.74 | ||||
| 11 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 12 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 76.19 | ||||
| 13 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 14 | W11700312 | Badge (stainless) (Replaces: W11238658) |
|
Immediately | $ 116.54 | ||||
| 15 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 16 | W11673273 | Glass Spacer (Replaces: W11379948) |
|
Immediately | $ 31.04 | ||||
| 17 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 |
