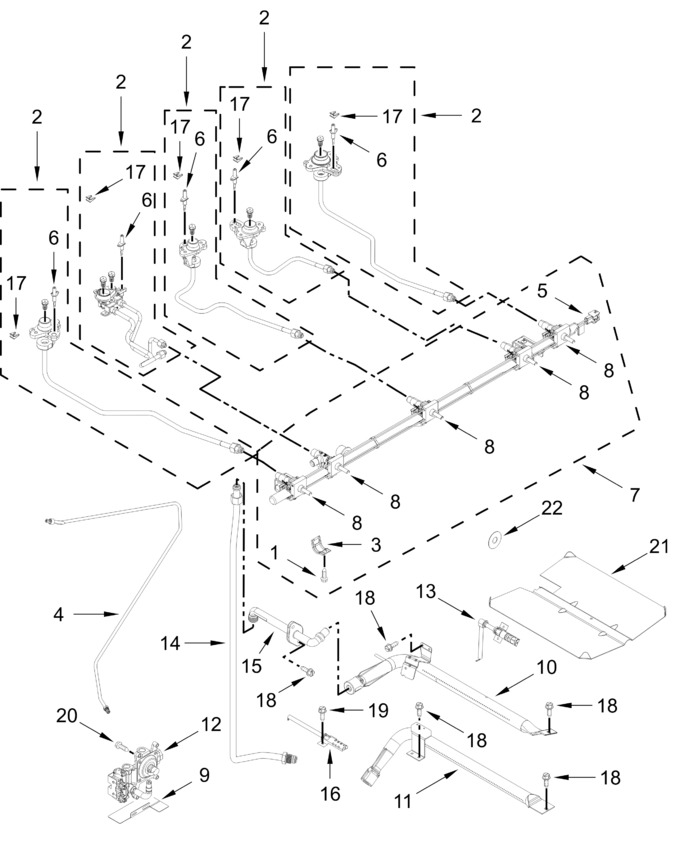

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11577790		Screw		Appelez-nous	-
2	W11186511		Holder Assembly, Gas Orifice (includes Orifice, 19k)			Immediately	$ 120.00
3	W10949105		Bracket, Saddle Valve				$ 22.75
4	W10432252		Tube, Gas Supply				$ 82.71
5	W11596366		Harness, Spark Switch				$ 101.77
6	W11675301		Electrode, Burner   (Replaces: W10898387)			Immediately	$ 35.31
7	W11602206		Manifold Assembly			Immediately	$ 319.10
8	W11593170		Valve, Gas (dual)				$ 103.41
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 94.98
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 91.65
12	W10861656		Valve, Regulator   (Replaces: W10554066)			Immediately	$ 334.54
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 109.83
14	W10306050		Tube, Broil Supply (broiler Fitting To Valve)				$ 189.82
15	W10583216		Fitting, Broil Burner				$ 95.85
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 104.12
17	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
21	3601P33645		Baffle, Broil Burner		Appelez-nous	-
22	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 20.30
	ARI079CE79648370F3CEB69CA5555816084		(burners)		Appelez-nous	-
	W11186524		Holder Assembly, Gas Orifice (includes Orifice,15k)				$ 82.16
	W11436985		Lp Conversion Kit (burners)   (Replaces: W11397194)			Immediately	$ 46.55
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	W11087486		Lp Conversion Kit (bake And Broil)   (Replaces: W10566535)			Immediately	$ 117.95
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11666003		Electrode, Burner   (Replaces: W10669525)				$ 48.41
	W11643126		Electrode, Burner   (Replaces: W10669524)			Immediately	$ 53.21
	W11186517		Holder Assembly, Gas Orifice (includes Orifice, 8k)				$ 81.78
	W11661897		Electrode, Burner   (Replaces: W10669523)				$ 48.36
	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
	W11186520		Holder Assembly, Gas Orifice (includes Orifice, 9.2k)				$ 82.49
	ARI59533660F9AB0B0BC7E501CA04F08592		(right Front, Center)		Appelez-nous	-
	ARI02A2D02EE64F6B7820BBC4A10A38B319		(right Rear, Center)		Appelez-nous	-
	W11620676		Valve, Gas   (Replaces: W11511819)				$ 70.32
	W11620677		Valve, Gas   (Replaces: W11511824)				$ 70.32
	W11620675		Valve, Gas   (Replaces: W11511818)			Immediately	$ 70.32
	W11186508		Holder Assembly, Gas Orifice (includes Orifice, 5k)				$ 77.55
