SELECT A DIAGRAM

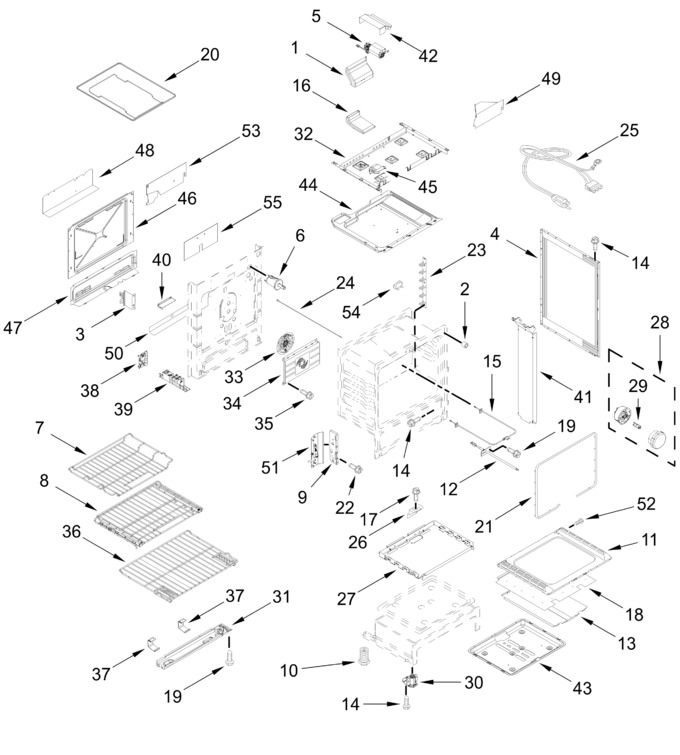

Chassis Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10614920 | Flue Assembly |
|
$ 174.87 | |||||
| 2 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 3 | W10273002 | Bracket, Oven Support |
|
$ 76.34 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W11445467) |
|
Immediately | $ 178.50 | ||||
| 5 | W11620737 | Cooling Fan (Replaces: W11467246) |
|
Immediately | $ 232.02 | ||||
| 6 | W11620712 | Switch, Door (Replaces: W11511828) |
|
Immediately | $ 46.31 | ||||
| 7 | W11256463 | Rack, Maximum Capacity (Replaces: W10554006) |
|
Immediately | $ 132.50 | ||||
| 8 | W11225131 | Rack, Sliding (Replaces: W10911366) |
|
Immediately | $ 329.90 | ||||
| 9 | W10634238 | Hinge, Receiver |
|
$ 77.26 | |||||
| 10 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 11 | W11844198 | Bottom, Oven (Replaces: W11831279) |
|
- | |||||
| 12 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 159.67 | ||||
| 13 | 3601P35645 | Baffle, Bake Burner |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 15 | W10552502 | Element, Broil Assist |
|
Immediately | $ 117.66 | ||||
| 16 | W11243157 | Flue Assembly (upper) (Replaces: W11040249) |
|
$ 370.35 | |||||
| 17 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 18 | W10323077 | Diffuser, Flame |
|
$ 281.78 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 20 | W11692811 | Basket, Airfry (Replaces: W11661815) |
|
Immediately | $ 117.69 | ||||
| 21 | W11562931 | Gasket, Door (Replaces: W11491752) |
|
Immediately | $ 87.76 | ||||
| 22 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 23 | W10603482 | Rack, Ladder |
|
$ 447.25 | |||||
| 24 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 66.87 | ||||
| 25 | W10889764 | Cord, Power |
|
$ 110.55 | |||||
| 26 | W10035900 | Support, Oven Bottom |
|
$ 14.36 | |||||
| 27 | W10541959 | Shield, Bake |
|
Immediately | $ 209.21 | ||||
| 28 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 40.75 | ||||
| 29 | WPW10571723 | Bulb, Halogen (40 Watts) (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 30 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 31 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 32 | W11320442 | Gas Box Burner |
|
- | |||||
| 33 | W11730307 | Fan, Convection (includes Element) (Replaces: W11635909) |
|
$ 243.51 | |||||
| 34 | W11844197 | Baffle, Full Convection (Replaces: W11842270) |
|
- | |||||
| 35 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 36 | W11699908 | Rack, Heavy Duty (Replaces: W10554005) |
|
$ 136.99 | |||||
| 37 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 38 | W10860916 | Module, Spark (0 Plus 2) (Replaces: W10457998) |
|
Immediately | $ 345.26 | ||||
| 39 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 40 | W10655451 | Guard, Splash (Replaces: W11206138) |
|
$ 76.02 | |||||
| 41 | W10162254 | Duct, Cooling |
|
$ 134.45 | |||||
| 42 | W10162255 | Duct, Cover |
|
$ 29.17 | |||||
| 43 | W11379356 | Pan, Bake |
|
$ 80.02 | |||||
| 44 | W10289168 | Box, Burner Si |
|
$ 204.90 | |||||
| 45 | W10162257 | Duct, Cooktop |
|
$ 28.76 | |||||
| 46 | W11379354 | Cover, Back |
|
Immediately | $ 77.79 | ||||
| 47 | W10162249 | Cover, Wire |
|
$ 109.24 | |||||
| 48 | W10162260 | Shield, Heat |
|
$ 90.28 | |||||
| 49 | W10818358 | Shield, Wire (includes Latch) |
|
- | |||||
| 50 | W10435470 | Brace, Main Back |
|
$ 81.74 | |||||
| 51 | W10605411 | Receiver, Slow Close Hinge |
|
$ 305.71 | |||||
| 52 | W10516115 | Screw |
|
$ 14.52 | |||||
| 53 | W11117035 | Shield, Wire |
|
$ 88.15 | |||||
| 54 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 55 | W10655441 | Shield, Power Cord |
|
$ 144.36 | |||||
| W11216991 | Orifice, Lp Broil (Replaces: W10465078) |
|
Immediately | $ 93.06 | |||||
| 4820F01559 | Insulation, Strap |
|
- | ||||||
| W11688567 | Insulation, Wrap (Replaces: W10289173) |
|
$ 128.01 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| 3196896 | Clip, Wire |
|
- | ||||||
| W11688781 | Insulation, Heat Shield (Replaces: W10655442) |
|
$ 35.19 | ||||||
| 7111P01760 | Clamp, Wire |
|
- | ||||||
| WPW10400494 | Orifice, Lp Bake (Replaces: W10400494) |
|
Immediately | $ 113.46 | |||||
| W11794987 | Insulation, Back (Replaces: W11769075) |
|
- | ||||||
| W11688421 | Insulation, Vent Trim (Replaces: W10701082) |
|
- | ||||||
| W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 62.66 |
