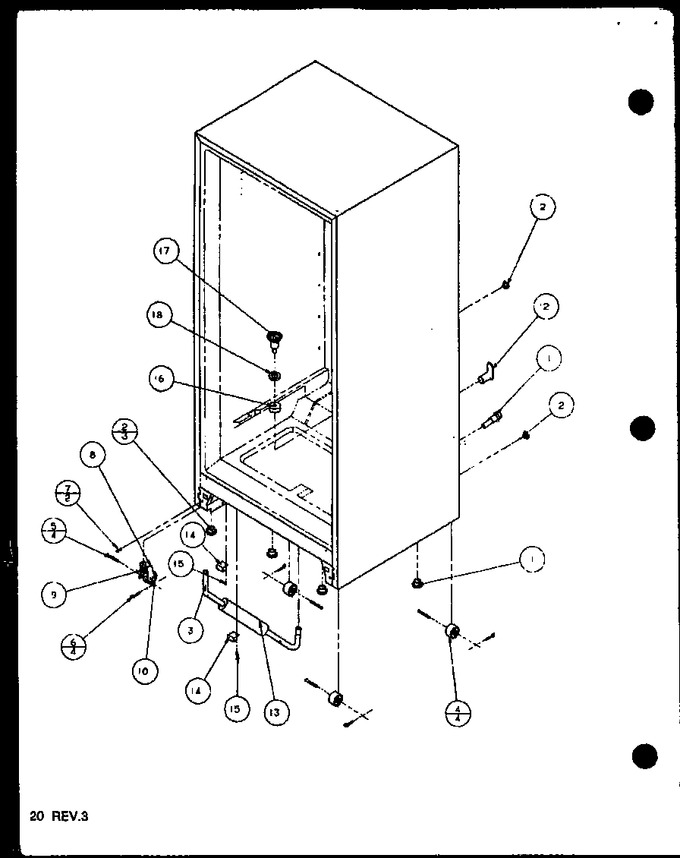

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3076901		Plug-button				$ 5.70
2	A3080001		Plug, Button (blk)		Appelez-nous	-
3	10388701		Drain Tube		Appelez-nous	-
4	M0520102		Roller		Appelez-nous	-
5	M1200202		Pin K		Appelez-nous	-
6	M1200004		Cotter Pin K		Appelez-nous	-
7	M0204339		Screw Bolt K		Appelez-nous	-
8	C8742401		Assy, Roller Bracket		Appelez-nous	-
9	M0286708		Nut, Speed				$ 47.85
10	M1205302		Rivet				$ 5.85
11	10277305		Fill Tube Assy		Appelez-nous	-
12	B5749501		Tunnel-heat Ex		Appelez-nous	-
13	A0329814		Tubing Insulation By Inch		Appelez-nous	-
14	M0102303		Clamp		Appelez-nous	-
14	10161301		Holder Tube		Appelez-nous	-
15	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
16	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
17	W10815413		Funnel, Drain   (Replaces: D7753901)			Immediately	$ 51.50
18	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
NI	C8956101		Assy, Roller Bracket		Appelez-nous	-
