Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10288401LQ Dr Fr-l-t Bc20h Appelez-nous -
1 10288401EQ Fz Foam Door Assembly, Black Appelez-nous -
1 10288401WQ Assy. Frz. Door Appelez-nous -
2 10339727 Trim Appelez-nous -
3 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

4 WPD7605115Q Gasket, Door   (Replaces: D7605115) Special Order $ 300.46

4 D7605123 Gasket, Frz Door (ebony) Appelez-nous -
5 10339728 Trim-vt Frz Appelez-nous -
6 D7689102 Inner Dr Panel, Frz Appelez-nous -
7 C8944910 Fz. Door Handle Assy Appelez-nous -
7 C8944909 Frz Door Handle Assy Appelez-nous -
7 C8944912 Fz. Door Handle Assy Appelez-nous -
7 C8944911 Assy, Frz Dr Hndl Appelez-nous -
8 M0274050 Washer Appelez-nous -
9 C8907237 Retainer-pkg Appelez-nous -
10 10163607 Btm Hinge Brkt E Appelez-nous -
11 C8814901 Pin, Hinge K Appelez-nous -
12 10392602 Bushing Appelez-nous -
13 10399502 Kit,btm Hinge Shim Appelez-nous -
13 10399501 Kit,btm Hinge Shim Appelez-nous -
14 C8948601 Center Hinge Bracket Appelez-nous -
15 B8373101 Center Pin Hinge Appelez-nous -
16 M0274049 Washer Appelez-nous -
17 WPW10348409 Mounting Screw   (Replaces: M0203944) In-Stock Immediately $ 8.20

18 WPW10348409 Screw   (Replaces: M0222429) In-Stock Immediately $ 8.20

19 W11573362 Screw, T. F.   (Replaces: M0226233) Special Order $ 14.72

20 M0219730 Screw Special Order $ 7.65

21 10339807 Trim, Top Freezer Appelez-nous -
21 D3958308 Cap Door Appelez-nous -
22 10392601 Bushing Appelez-nous -
23 10266105 Stop- Door Appelez-nous -
23 10266104 Stop Door Appelez-nous -
24 C8925502 Strip Hinge Top Appelez-nous -
25 B8351405 Shim, Center Hinge Appelez-nous -
25 B8351404 Shim, Center Hinge Appelez-nous -
26 M0275148 Tape Per Roll K Appelez-nous -
27 10339903 Trim, Bottom Frz-refrig Appelez-nous -
28 W11245710 Screw, Sm (stnls)   (Replaces: M0210417) In-Stock Immediately $ 14.75


    View Diagram in Separate Window     Print Icon   Print Part List

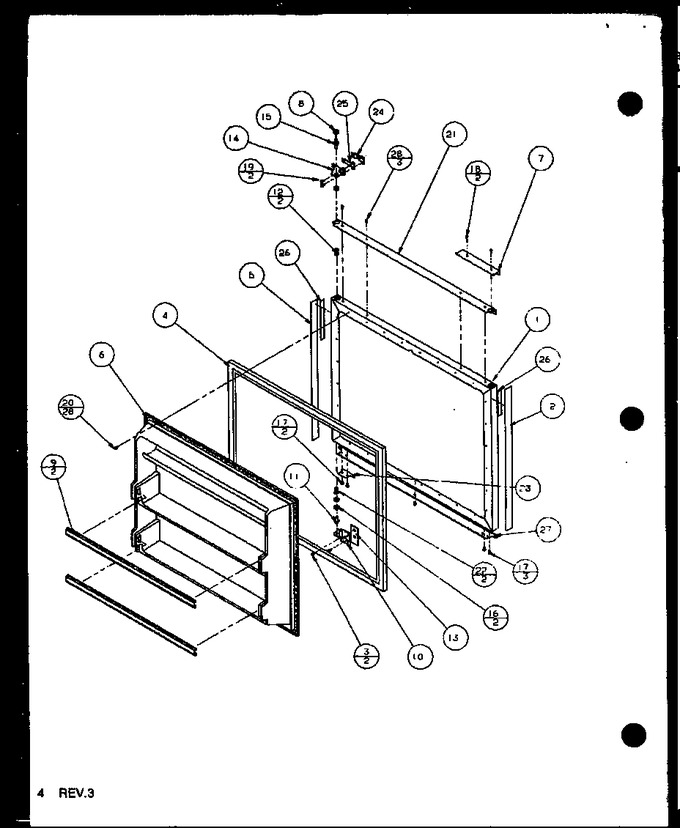

Diagram for BZ20QG (BOM: P1125507W G)
