SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Cabinet Bottom And Back
02 - Cabinet Bottom And Back

Diagram for 03 - Cabinet Interior
03 - Cabinet Interior

Diagram for 04 - Compressor Compartment
04 - Compressor Compartment

Diagram for 05 - Controls And Lamps
05 - Controls And Lamps

Diagram for 06 - Divider And Evap
06 - Divider And Evap

Diagram for 07 - Fz Door
07 - Fz Door

Diagram for 08 - Ref Door
08 - Ref Door

Diagram for 09 - Ref Door And Trim Parts
09 - Ref Door And Trim Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11245710 Screw, Sm (stnls)   (Replaces: M0210417) In-Stock Immediately $ 14.75

2 10339730 Trim Appelez-nous -
3 10392602 Bushing Appelez-nous -
4 10266105 Stop- Door Appelez-nous -
4 10266104 Stop Door Appelez-nous -
5 C8945005 Nameplate Appelez-nous -
5 C8945004 Nameplate Appelez-nous -
6 10288602WQ Ref Dr Fm Assy Appelez-nous -
6 10288602LQ L Ref Dr Assy Fm Appelez-nous -
6 10288602EQ As Ref Dr Cfc 11 Appelez-nous -
7 D7694707 Insert K Appelez-nous -
7 D7694704 Insert, Handle Appelez-nous -
7 D7694706 Insert, L Handle Appelez-nous -
8 D7694803 Handle Special Order $ 125.50

9 WPW10348409 Mounting Screw   (Replaces: M0203944) In-Stock Immediately $ 8.20

10 67006529 Screw Sm   (Replaces: M0206219) Special Order $ 13.47

11 WP8281236 Screw (counter Sunk)   (Replaces: M0215704) Special Order $ 8.16

12 M0310601 Plug Appelez-nous -
12 M0310606 Plug Appelez-nous -
12 M0310605 Plug Appelez-nous -
13 M0310713 Plug Appelez-nous -
13 WP67001130 Plug, Button (wht)   (Replaces: M0310701) In-Stock Immediately $ 5.98

13 M0310714 Plug Appelez-nous -
14 10310901 Tray, Butter Appelez-nous -
15 D7695615 Bucket, Egg Appelez-nous -
16 D7805908 Cover, Egg Bucket Appelez-nous -
17 10339903 Trim, Bottom Frz-refrig Appelez-nous -
18 10339805 Trim-top Fz Appelez-nous -
19 D7739606 Trim, L Appelez-nous -
19 D7739604 Trim, White Appelez-nous -
19 10339729 Trim Appelez-nous -
20 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

21 B5744301 Hinge Appelez-nous -
22 B8389003 Shim, Top Hinge, .016 Appelez-nous -
22 B8389002 Shim Top Hinge Appelez-nous -
22 B8389001 Shim, Top Hinge Appelez-nous -
23 10392601 Bushing Appelez-nous -
24 D7872105 Cover Hinge L Appelez-nous -
24 D7872107 Cover, Hinge Appelez-nous -
24 D7872103 Cover Hinge L Appelez-nous -
25 A3030335 Gasket-per Ft Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

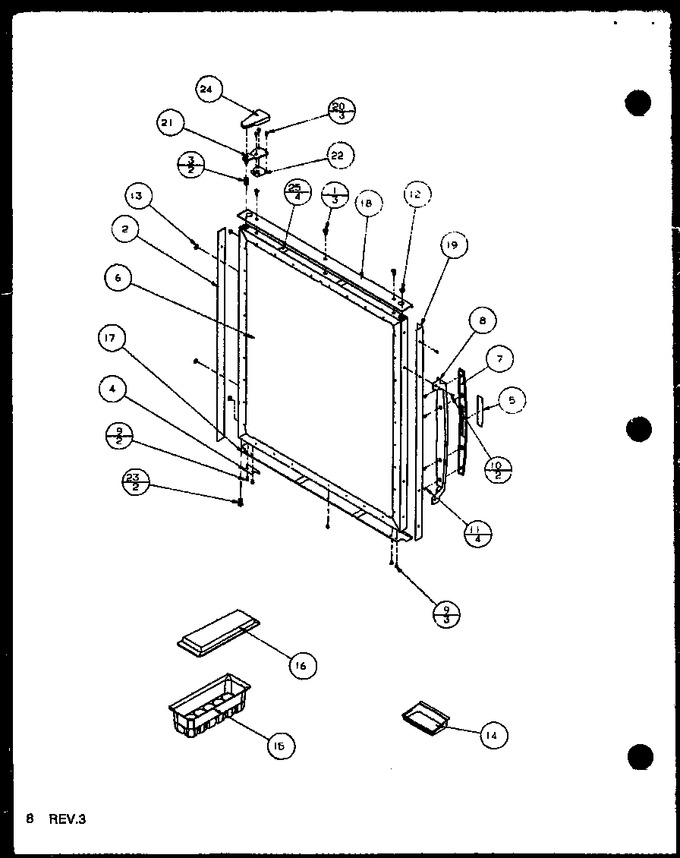

Diagram for BZ20QG (BOM: P1125507W G)
