Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11384469 Switch-nc Light   (Replaces: C3680307) In-Stock Immediately $ 39.09

2 C8902601 Insert, Control Appelez-nous -
3 D7795816 Knob-control Appelez-nous -
4 D7687701 Insul. Damper Appelez-nous -
5 D7687515 Cover Refrig Cont Appelez-nous -
6 D7547403 Damper Control Kit Appelez-nous -
7 B5733302 Clip, Ground Appelez-nous -
8 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

9 D7716404 Housing-ref Light Appelez-nous -
10 C8778301 Insulation Appelez-nous -
11 D7297603 Cover, Light Sw Appelez-nous -
12 D7288116 Shield-light Appelez-nous -
13 D7808602 Socket, Dual Lamp Appelez-nous -
14 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

15 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

16 M0310308 Plug, Button (wht) Appelez-nous -
17 B8345401 Gasket, Damper Appelez-nous -
18 M0310716 Plug Appelez-nous -
18 WP12246608 Plug, Button (blk)   (Replaces: M0310727) In-Stock Immediately $ 8.15

18 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 5.98

19 C8943302 Bracket, Control Appelez-nous -
20 M0010215 Pop Rivet Appelez-nous -
21 M0350101 Switch Appelez-nous -
22 B8362503 Insulation Appelez-nous -
23 D7714403 Socket-light Appelez-nous -
24 C8730102 Shield, Light Appelez-nous -
25 B5759607 Gasket Appelez-nous -
26 D7689901 Knob, Control Appelez-nous -
27 B8314801 Gasket Appelez-nous -
28 C8940402 Barrier, Light Switch Appelez-nous -
29 D7878809 Cover, Temp. Control Appelez-nous -
30 C8946701 Control Temp Appelez-nous -
31 B5781002 Jumper Wire Appelez-nous -
32 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

33 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

34 M0253916 Screw Appelez-nous -
35 A3030328 Gasket (1= 1ft.) Appelez-nous -
36 M0216531 Screw Appelez-nous -
37 B5759617 Gasket, Sealing Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

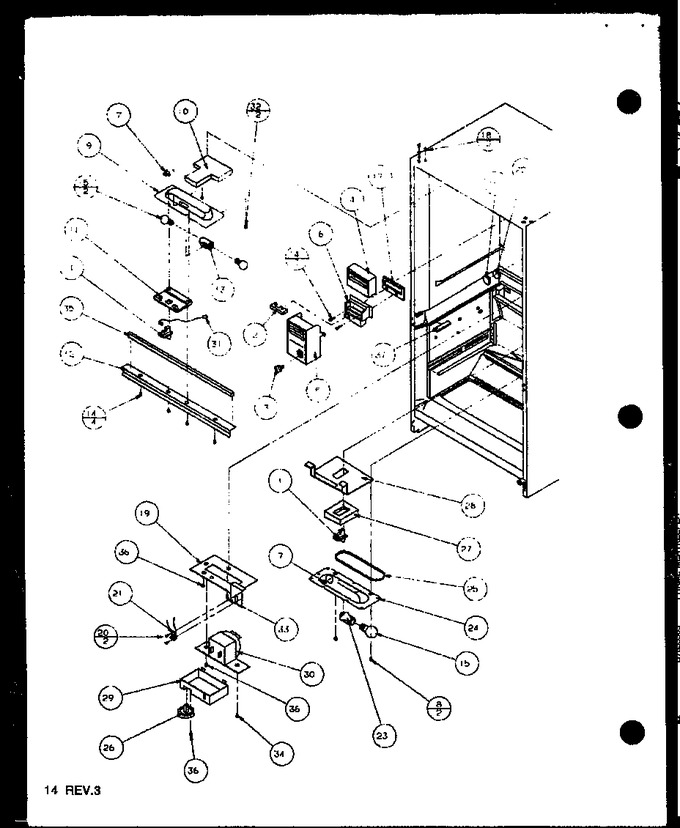

Diagram for BZ20QG (BOM: P1125507W G)
