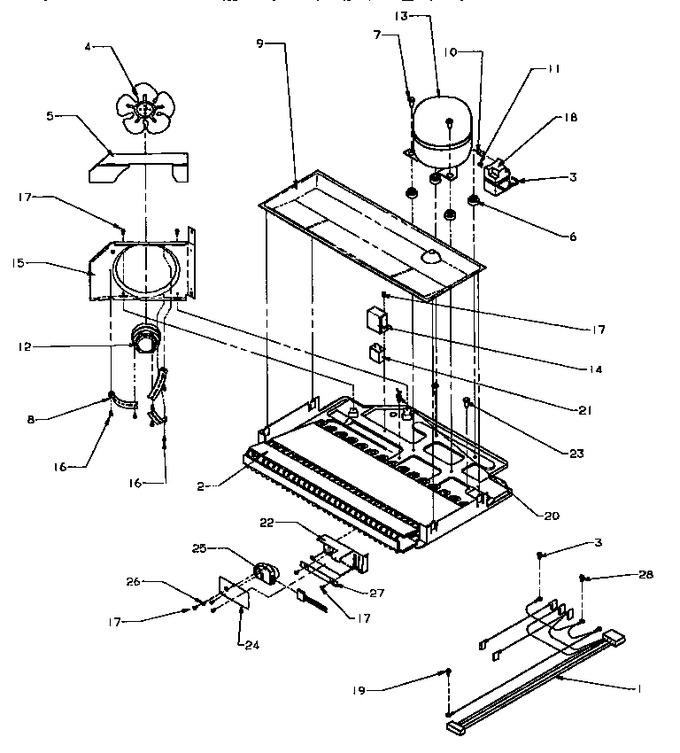

02 - Compressor Compartment


03 - Crisper Compartment


04 - Evap Area


05 - Fz Door


06 - Ref Inner Door


07 - Ref Outer Door


08 - Ref/fz Control Switches


09 - Ref/fz Shelving


10 - Rollers/drain Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10823801		Harness, M.c.		Appelez-nous	-
2	Y00000000		See Note Condenser/basepan Assembly -- (see Note)		Appelez-nous	-
3	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
4	B5742602		Blade, Fan		Appelez-nous	-
5	10442702		Gasket, Cond. Fan		Appelez-nous	-
6	WPW10169124		Grommet, Compressor   (Replaces: 10514101)			Immediately	$ 7.55
7	M0221548		Screw, Shoulder		Appelez-nous	-
8	10582501		Bracket, Cond. Motor		Appelez-nous	-
9	10427402		Pan, Drain		Appelez-nous	-
10	10377011		Overload		Appelez-nous	-
11	WP10097202		Ptc Relay   (Replaces: 10097202)				$ 124.93
12	833697		Motor, Fan   (Replaces: 10884501)			Immediately	$ 88.15
13	Y00000000		See Note Compressor-tc Tp1380y -- (see Note)		Appelez-nous	-
14	10266401		Shield-capacitor		Appelez-nous	-
15	10426904		Shroud, Cond. Fan (e Coat)		Appelez-nous	-
16	M0223803		Screw		Appelez-nous	-
17	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
18	10757301		Cover, Terminal		Appelez-nous	-
19	M0253916		Screw		Appelez-nous	-
20	B5667304		Wire Clip		Appelez-nous	-
21	WP65889-4		Capacitor   (Replaces: C8931604)			Immediately	$ 61.14
22	10503201		Brkt, Timer		Appelez-nous	-
23	M0221548		Screw, Shoulder		Appelez-nous	-
24	10503101		Cover, Timer Brkt		Appelez-nous	-
25	R0131577		Timer, Defrost (8 Hr)   (Replaces: 10530702)			Immediately	$ 51.24
26	M0218118		Screw		Appelez-nous	-
27	10542701		Washer, Brkt		Appelez-nous	-
28	WP489399		Screw   (Replaces: M0232903)				$ 7.30
NI	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
