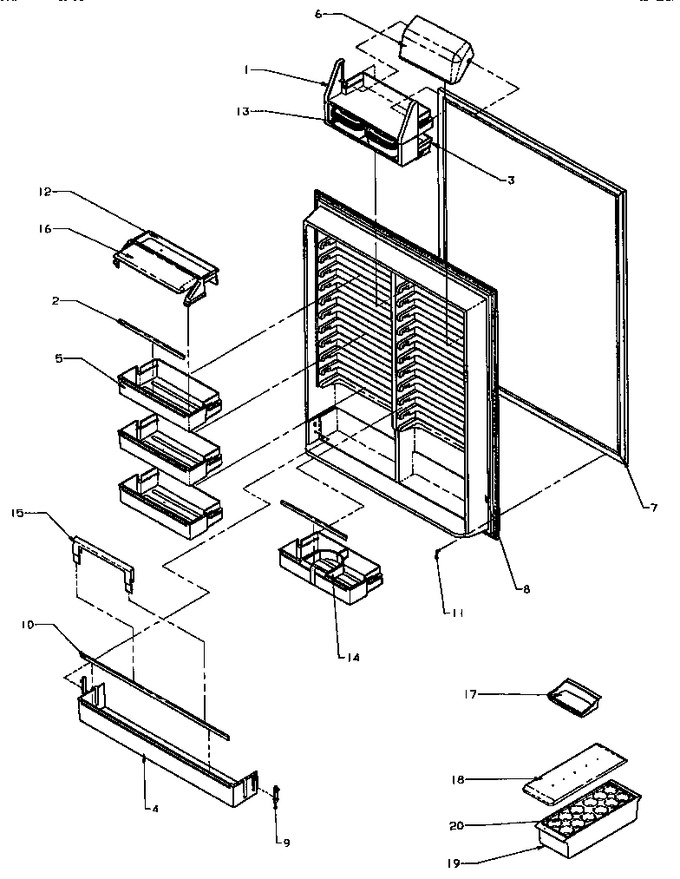

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10182702		Shelf, Dairy		Appelez-nous	-
2	10183921		Trim Dr. Shelf		Appelez-nous	-
3	10182802		Shelf, Container Ser.		Appelez-nous	-
4	10183108		Retainer, Ref Door (no Decor)		Appelez-nous	-
5	10183006		Shelf, Ref Door		Appelez-nous	-
6	10422606		Door, Dairy		Appelez-nous	-
7	WP12550115Q		Gasket,ref Dr(white)   (Replaces: 10456809)				$ 176.41
8	10462101		Liner, Ref. Door		Appelez-nous	-
9	10202001		Clip, Retainer		Appelez-nous	-
10	10183969		Trim, Door Shelf		Appelez-nous	-
11	M0219730		Screw				$ 7.65
12	10431101		Shelf, Snack Stop		Appelez-nous	-
13	10185001		Container		Appelez-nous	-
14	10441101		Hugger, Bottle (shelf Divider)		Appelez-nous	-
15	10468001		Retainer, Tall Pkg		Appelez-nous	-
16	10431007		Door, Snack Stop		Appelez-nous	-
17	10310901		Tray, Butter		Appelez-nous	-
18	10436404		Lid, Utility				$ 60.85
19	10423124		Bin, Egg V		Appelez-nous	-
20	10436504		Tray, Egg		Appelez-nous	-
