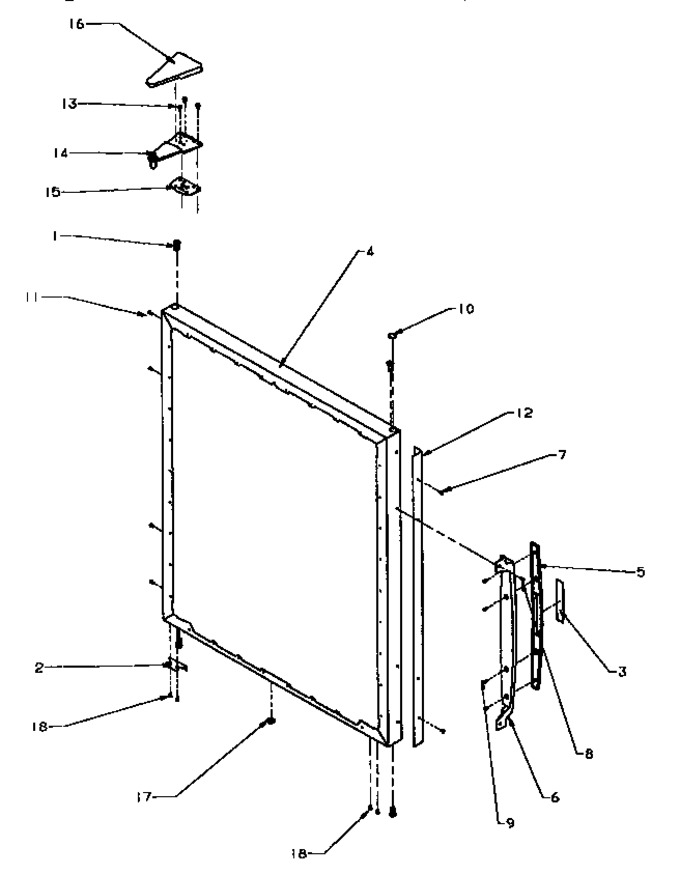

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10393802		Bushing, Door (wht)		Appelez-nous	-
2	10447102		Stop, Door		Appelez-nous	-
3	C8945004		Nameplate		Appelez-nous	-
4	10537201L		Assy Ref Dr Fm		Appelez-nous	-
5	D7694706		Insert, L Handle		Appelez-nous	-
6	D7694803		Handle				$ 125.50
7	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 7.76
8	67006529		Screw Sm   (Replaces: M0206219)				$ 12.83
9	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 7.56
10	10686402		Plug, Button		Appelez-nous	-
11	M0310730		Plug Button (almond)		Appelez-nous	-
12	D7739606		Trim, L		Appelez-nous	-
13	R9800670		Kit, Screw   (Replaces: M0226331)				$ 9.38
14	10185105		Hinge, Top		Appelez-nous	-
15	10451302		Shim, Top Hinge				$ 0.63
15	10451301		Shim, Top Hinge				$ 1.08
15	10451303		Shim, Top Hinge				$ 1.08
16	10444803		Cover, Hinge (almond)		Appelez-nous	-
17	M0310338		Plug Button Almond		Appelez-nous	-
18	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
