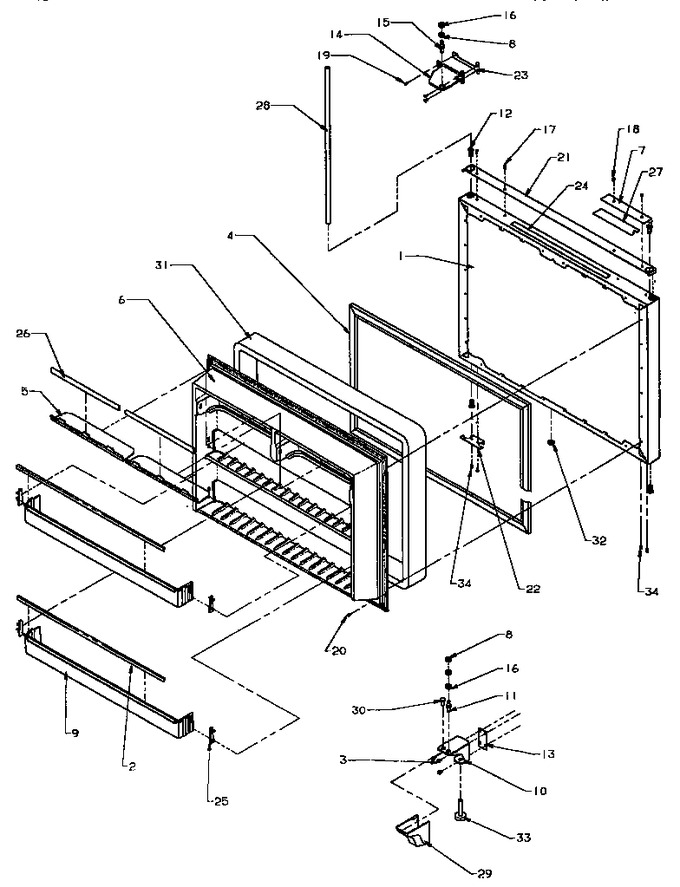

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10537401L | Assy Frz Dr Fm Btm |
|
- | |||||
| 2 | 10183969 | Trim, Door Shelf |
|
- | |||||
| 3 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 4 | WP12550116Q | Gasket,fz Dr(white) (Replaces: 10456810) |
|
Immediately | $ 122.85 | ||||
| 5 | 10513601 | Assy, Liner Frz Dr (bm) |
|
- | |||||
| 6 | 10462201 | Assy, Liner Frz Dr (bm) |
|
- | |||||
| 7 | C8944911 | Assy, Frz Dr Hndl |
|
- | |||||
| 8 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) |
|
Immediately | $ 8.40 | ||||
| 9 | 10419001 | Retainer, Door |
|
- | |||||
| 10 | 10575305 | Hinge, Bottom (almond) |
|
- | |||||
| 11 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 12 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 13 | 10447901 | Shim, Btm Hinge |
|
- | |||||
| 13 | 10447902 | Shim Hinge |
|
- | |||||
| 14 | 10433504 | Hinge-center |
|
- | |||||
| 15 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.68 | |||||
| 16 | M0274058 | Shim, Non Metal (wht) |
|
$ 5.83 | |||||
| 17 | WPW10348409 | Mounting Screw (Replaces: M0203944) |
|
Immediately | $ 8.20 | ||||
| 18 | WPW10348409 | Screw (Replaces: M0222429) |
|
Immediately | $ 8.20 | ||||
| 19 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.72 | |||||
| 20 | M0219730 | Screw |
|
$ 7.65 | |||||
| 21 | 10201511 | Cap, Door |
|
- | |||||
| 22 | 10447102 | Stop, Door |
|
- | |||||
| 23 | 10562204 | Kit, Ctr Hinge Shim |
|
- | |||||
| 23 | 10562205 | Shim, Ctr. Hinge |
|
- | |||||
| 23 | 10562206 | Shim, Ctr. Hinge |
|
- | |||||
| 24 | M0275163 | Tape Per Roll |
|
- | |||||
| 25 | 10202001 | Clip, Retainer |
|
- | |||||
| 26 | 10304106 | Extrsn, Shelf |
|
- | |||||
| 27 | 10377801 | Shim-fz Door Handle |
|
- | |||||
| 28 | 10391302 | Support, Pin |
|
- | |||||
| 29 | 10462704 | Cover-l Hinge Lw |
|
- | |||||
| 30 | M0310331 | Plug, Button Almond |
|
- | |||||
| 31 | 876370 | Insulation Bott (1= 1ft) (Replaces: B0523588) |
|
$ 243.14 | |||||
| 32 | M0310338 | Plug Button Almond |
|
- | |||||
| 33 | W11177593 | Brake, Foot (Replaces: 10354001) |
|
$ 12.18 | |||||
| 34 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| NOTE: | Do Not Perform Sealed System Svc On These Models Prior To December 31, 1994. If Determined That Sealed System Entry Or Repairs Are Needed, Please Call 1-800-8 |
|
- |
