SELECT A DIAGRAM
New Model Search:

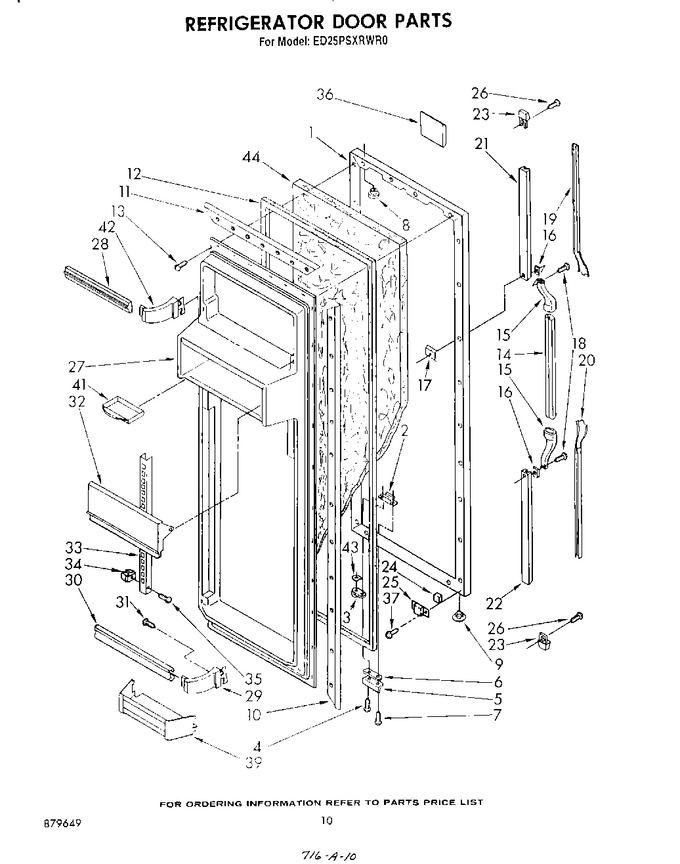

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1116167 | Refrigerator, Door Panel (almond) |
|
- | |||||
| 1 | 1116169 | Refrigerator, Door Panel (platinum (also Order Item 44)) |
|
- | |||||
| 1 | 1116168 | Refrigerator, Door Panel (toast) |
|
- | |||||
| 1 | 1116165 | Refrigerator, Door Panel (white) |
|
- | |||||
| 1 | 1116166 | Refrigerator, Door Panel (golden Harvest) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 4318165 | Door, Cam Upper (Replaces: 1115905) |
|
Immediately | $ 27.36 | ||||
| 4 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 7.86 | ||||
| 5 | 1115906 | Bracket, Door Stop |
|
- | |||||
| 6 | 988421 | Shim |
|
- | |||||
| 7 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 8 | 509929 | Cap, Hinge |
|
- | |||||
| 9 | 534927 | Hole Plug |
|
- | |||||
| 10 | 982887 | Retainer, Side |
|
- | |||||
| 11 | 836121 | Retainer, Top & Bottom |
|
- | |||||
| 12 | 939341 | Door, Gasket Magnetic |
|
- | |||||
| 13 | WP489069 | Screw, No.7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 13 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.85 | ||||
| 14 | 1111552 | Handle, Center |
|
- | |||||
| 15 | 935103 | Center End Cap (2) |
|
- | |||||
| 16 | 935075 | Shim, Handle Center (2) |
|
- | |||||
| 17 | 941242 | Screw Anchor (2) |
|
- | |||||
| 18 | WPW10141645 | Screw, 8 X 1/2 (4) (Replaces: 489084) |
|
$ 7.67 | |||||
| 19 | 1119773 | Insert, Handle (top) |
|
- | |||||
| 20 | 1119774 | Insert, Handle (bottom) |
|
- | |||||
| 21 | 941297 | Retainer Insert |
|
- | |||||
| 22 | 941262 | Retainer Insert |
|
- | |||||
| 23 | 941259 | End Cap |
|
- | |||||
| 24 | 939206 | Magnet |
|
- | |||||
| 25 | 939205 | Magnet, Cover |
|
- | |||||
| 26 | 489075 | Screw, 10-32 X 3/8 |
|
- | |||||
| 27 | 988620 | Interior Door Panel |
|
- | |||||
| 28 | 1108918 | Trim, Door Shelf |
|
- | |||||
| 29 | 849223 | Retainer, Door Trim |
|
- | |||||
| 30 | 1108919 | Trim, Door Shelf |
|
- | |||||
| 31 | WP488787 | Screw (repair) (Replaces: 488704) |
|
$ 10.58 | |||||
| 31 | 00487953 | Screw, 8-18 X 1/2 (Replaces: 487953) |
|
$ 177.40 | |||||
| 32 | 1108721 | Compartment Door |
|
- | |||||
| 33 | 983804 | Shelf Ladder |
|
- | |||||
| 34 | 537095 | Clip, Expansion |
|
- | |||||
| 35 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 7.79 | ||||
| 36 | 1116196 | Escutcheon, Nameplate |
|
- | |||||
| 37 | 488895 | Screw |
|
- | |||||
| 39 | 1108920 | Shelf, Door Cantilever |
|
- | |||||
| 41 | 520747 | Tray, Butter |
|
- | |||||
| 42 | WP849996 | Support, Trim Shelf (Replaces: 849996) |
|
$ 7.57 | |||||
| 43 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.58 | |||||
| 44 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- |
