SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Airflow


05 - Dispenser Front


06 - Refrigerator Door


07 - Freezer Door

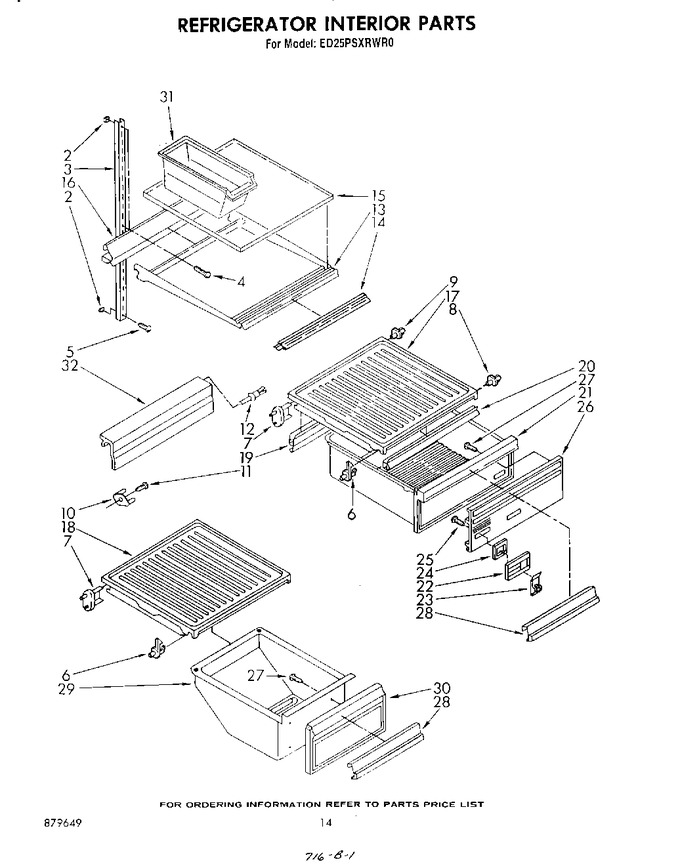

08 - Refrigerator Interior , Lit/optional


09 - Freezer Interior


10 - Unit


11 - Ice Maker


12 - Airflow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	520965		Screw, Support Ladder				$ 29.86
3	934264		Shelfladder (2)		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	984779		Shelf, Stud		Appelez-nous	-
7	937521		Stud, Shelf		Appelez-nous	-
8	208500		Shelf, Stud		Appelez-nous	-
9	936591		Stud				$ 6.18
10	849907		Stud Water Reservoir		Appelez-nous	-
11	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.79
12	526383		Stud		Appelez-nous	-
13	936787		Shelf, Cantilever		Appelez-nous	-
14	849021		Shelf Trim, Cantilever		Appelez-nous	-
15	1108782		Glass, Cantilever Shelf		Appelez-nous	-
16	849028		Reflector, Cantilever		Appelez-nous	-
17	1108778		Pan Slide & Cover (crisper)		Appelez-nous	-
18	1101202		Pan Slide & Cover		Appelez-nous	-
19	982588		Crisper Gasket Rear		Appelez-nous	-
20	982587		Crisper Gasket Front		Appelez-nous	-
21	943112		Pan Crisper		Appelez-nous	-
22	942234		Housing, Humidity Control		Appelez-nous	-
23	942235		Slide, Humidity Control		Appelez-nous	-
24	942236		Seal, Humidity Control		Appelez-nous	-
25	489041		Screw, 6-19 X 7/16		Appelez-nous	-
26	1108780		Front Cover, Crisper		Appelez-nous	-
27	488132		Screw (repair)		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 7.79
28	984750		Overlay, Front Cover		Appelez-nous	-
29	840037		Pan (meat)		Appelez-nous	-
30	1108777		Front Cover, Meat		Appelez-nous	-
31	WP982704		Container, Utility   (Replaces: 1106048)				$ 31.00
32	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
32	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
32	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
32	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
32	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
32	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
32	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
32	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
32	984233		Cover, Reservoir		Appelez-nous	-
32	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
32	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
32	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
32	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
32	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
32	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
32	833938		Kit, Terminal Connector				$ 8.07
32	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
32	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
32	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
32	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
32	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
32	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
32	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
32	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
32	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
32	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
32	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	LIT1116192		Guide, Use & Care		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	LIT879649		List, Parts		Appelez-nous	-
	LIT1108931		Energy Label		Appelez-nous	-
	LIT1115320		Service & Wiring Sheet		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	285363		Xenamel, Toast (13 Oz. Spray Can)				$ 47.70
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
