Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 842339 Grommet Appelez-nous -
2 842355 Support, Light Lens (r.s.) Appelez-nous -
3 842356 Support, Light Lens (l.s.) Appelez-nous -
4 843945 Clip, Tubular Appelez-nous -
5 4387478 Socket, Light   (Replaces: 851067) In-Stock Immediately $ 110.16

6 943555 Light, Lens Appelez-nous -
7 942898 Air Duct, Assembly Appelez-nous -
8 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.02

9 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

10 943557 Light Lens, Freezer Appelez-nous -
11 943553 Sensor, Thermistor Appelez-nous -
13 1108624 Damper & Heater Assembly Appelez-nous -
14 W11693756 Screw   (Replaces: 487239) In-Stock Immediately $ 14.06

15 943577 Air Diffuser In-Stock Immediately $ 57.56

16 SM999 Baffle, Liner Top   (Replaces: 983369) In-Stock Immediately $ 30.26

17 WP489069 Screw, 8 X 1/2   (Replaces: 488772) In-Stock Immediately $ 7.86

18 836667 Spacer Appelez-nous -
19 488357 Screw, 8 X 1-1/4 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

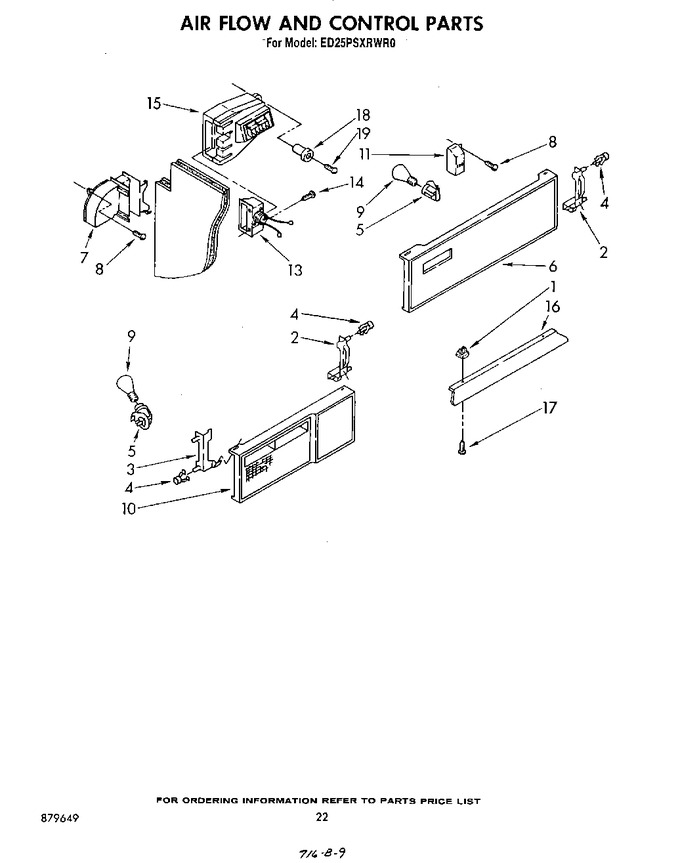

Diagram for ED25PSXRWR0
