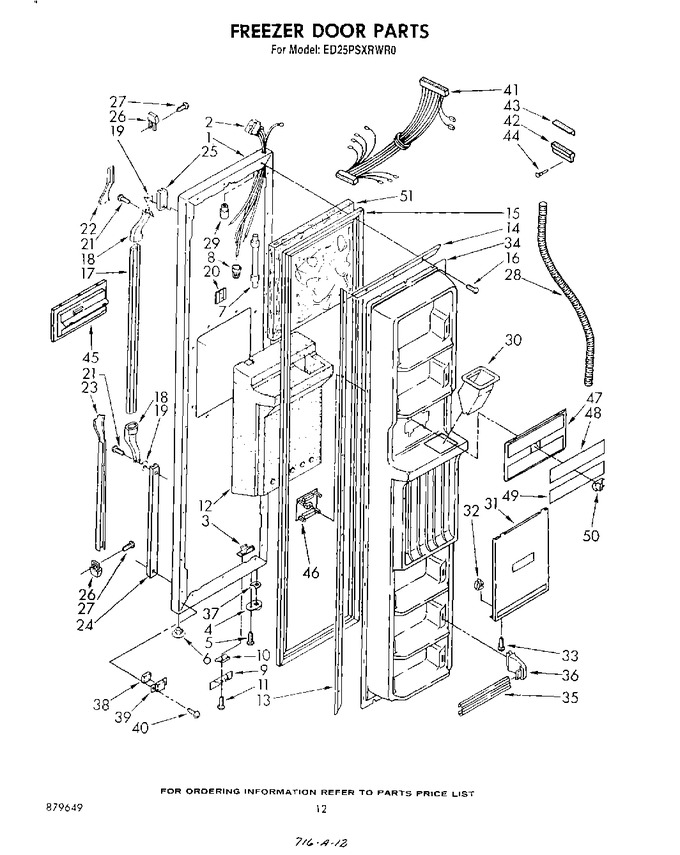

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1119315		Exterior Door Panel Freezer (platinum (also Order Item 51))		Appelez-nous	-
1	1119311		Exterior Door Panel Freezer (white)		Appelez-nous	-
1	1119312		Exterior Door Panel Freezer (golden Harvest)		Appelez-nous	-
1	1119313		Exterior Door Panel Freezer (almond)		Appelez-nous	-
1	1119314		Exterior Door Panel Freezer (toast)		Appelez-nous	-
2	1106895		Door, Harness		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	4318165		Door Closer, Cam   (Replaces: 1115905)			Immediately	$ 27.36
5	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
6	534927		Hole Plug		Appelez-nous	-
7	991372		Tube, Door Wiring		Appelez-nous	-
8	227991		Wire Connector		Appelez-nous	-
9	1115906		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	488549		Screw, 89 X 5/8		Appelez-nous	-
12	1116287		Dispenser, Insulation		Appelez-nous	-
13	982887		Retainer, Gasket Side		Appelez-nous	-
14	983643		Retainer, Gasket Top & Bottom		Appelez-nous	-
15	939342		Door Gasket, Magnetic		Appelez-nous	-
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
17	1111552		Handle, Center		Appelez-nous	-
18	935103		Center End Cap, Handle		Appelez-nous	-
19	935075		Shim, Handle Center		Appelez-nous	-
20	941242		Screw Anchor		Appelez-nous	-
21	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
22	1119773		Insert, Handle (top)		Appelez-nous	-
23	1119774		Insert, Handle (bottom)		Appelez-nous	-
24	941262		Retainer Insert (bottom)		Appelez-nous	-
25	941297		Retainer Insert (top)		Appelez-nous	-
26	941259		End Cap		Appelez-nous	-
27	489075		Screw, 10-32 X 5/8		Appelez-nous	-
28	1109246		Tube, Door Wiring		Appelez-nous	-
29	939886		Hinge, Pin		Appelez-nous	-
30	987188		Ice Chute		Appelez-nous	-
31	985550		Overlay, Ice Dispenser		Appelez-nous	-
32	537095		Expansion Clip		Appelez-nous	-
33	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.79
34	1116100		Interior, Door Panel		Appelez-nous	-
35	1108928		Trim, Door Shelf		Appelez-nous	-
36	839904		Retainer, Door Trim				$ 5.65
37	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
38	939206		Magnet		Appelez-nous	-
39	939205		Magnet, Cover		Appelez-nous	-
40	488895		Screw		Appelez-nous	-
41	1106896		Control Harness		Appelez-nous	-
42	1106901		Connector		Appelez-nous	-
43	1106902		Strain Relief		Appelez-nous	-
44	1106903		Keying Plug		Appelez-nous	-
45	1115224		Control Board		Appelez-nous	-
46	1106911		Control, Switch Diagnostic		Appelez-nous	-
47	1106413		Switch Panel		Appelez-nous	-
48	1116183		Insert, Switch Panel (upper)		Appelez-nous	-
49	1116184		Insert, Switch Panel (lower)		Appelez-nous	-
50	1106466		Knob, Switch		Appelez-nous	-
51	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
