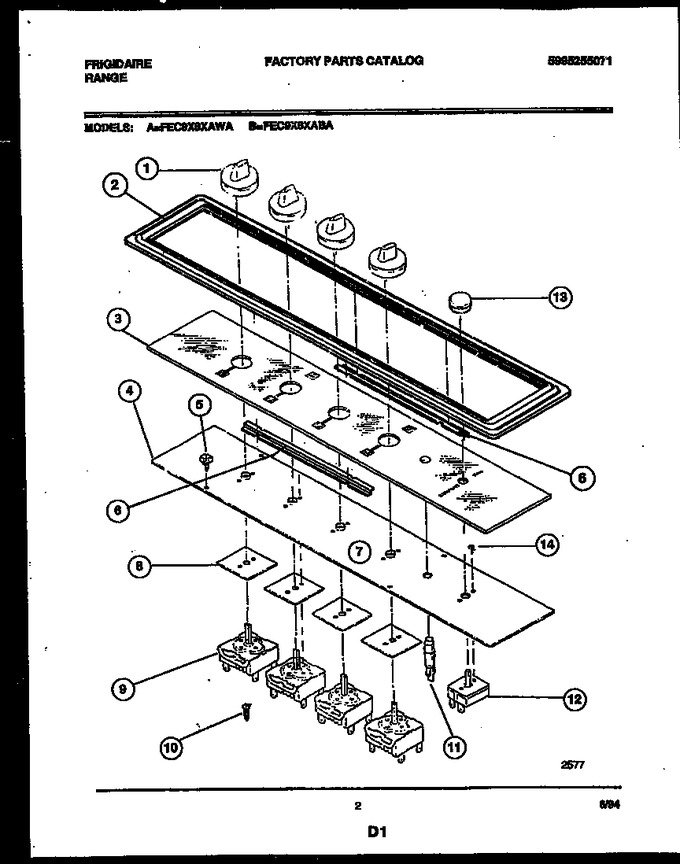

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303304264 | Knob Infinite Switch-black |
|
- | |||||
| 2 | 5303210523 | Trim Control-black |
|
- | |||||
| 3 | 5303304267 | Control Panel-glass |
|
- | |||||
| 4 | 5303304268 | Bracket Switch Mtg. |
|
- | |||||
| 5 | 5303210527 | Screw |
|
- | |||||
| 6 | 5303210528 | Retainer Glass |
|
- | |||||
| 7 | 5303304269 | Screw Retainer |
|
- | |||||
| 8 | 5303210530 | Gasket-switch |
|
- | |||||
| 9 | 5303210531 | Switch Infinite |
|
- | |||||
| 10 | 5303210497 | Screw Switch Mtg. |
|
- | |||||
| 11 | 5303210532 | Indicator Light |
|
- | |||||
| 12 | 5303304656 | Switch Fan W/ Nut |
|
- | |||||
| 13 | 5303304271 | Knob Fan-black |
|
- | |||||
| 14 | 5303210497 | Screw Fan Switch |
|
- |
