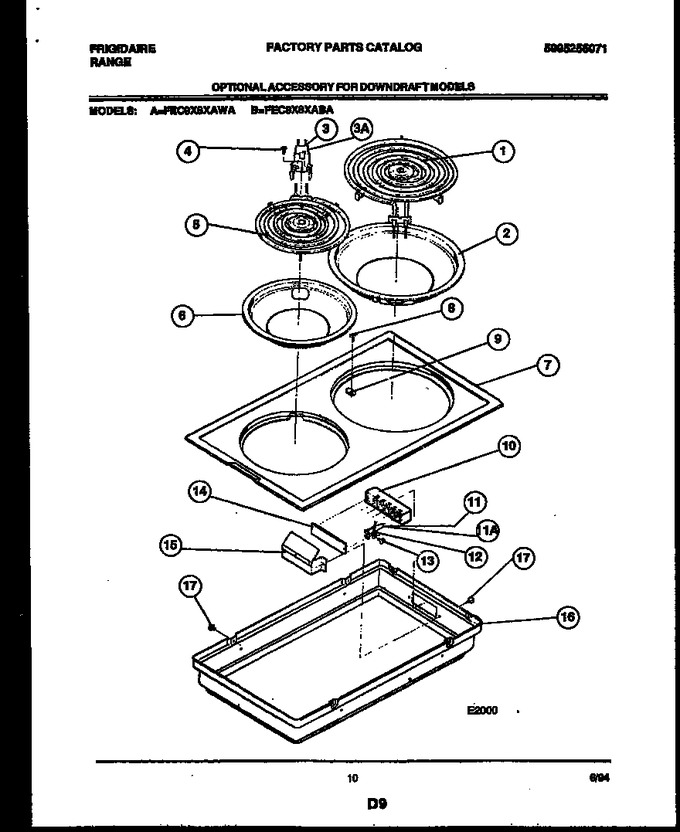

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303304500 | Element Large |
|
- | |||||
| 3 | 5303210562 | Terminal Block Front W/ Bracket-wire |
|
- | |||||
| 4 | 5303210536 | Screw |
|
- | |||||
| 5 | 5303304503 | Element Small |
|
- | |||||
| 7 | 5303304657 | Module Top-white Proc 81-8014-00 |
|
- | |||||
| 8 | 5303210567 | Screw |
|
- | |||||
| 9 | 5303210568 | Weld Nut |
|
- | |||||
| 10 | 5303210569 | Plug Ceramic |
|
$ 21.05 | |||||
| 11 | 5303210570 | Prong-ground (4) |
|
- | |||||
| 12 | 5303210572 | Harness-wire |
|
- | |||||
| 13 | 5303210497 | Screw (5) |
|
- | |||||
| 14 | 5303210574 | Insulator |
|
- | |||||
| 15 | 5303210575 | Bracket Ceramic Plub |
|
- | |||||
| 16 | 5303304508 | Module Pan |
|
- | |||||
| 17 | 5303210536 | Screw |
|
- | |||||
| 11A | 5303210571 | Prong-power (4) |
|
- | |||||
| 2A | 5303304502 | Burner Bowl Large-black Porc 81-8014-18 |
|
- | |||||
| 3A | 5303210563 | Terminal Block Rear W/ Bracket-wire |
|
- | |||||
| 6A | 5303304505 | Burner Bowl Small-black Porc 81-8014-18 |
|
- |
