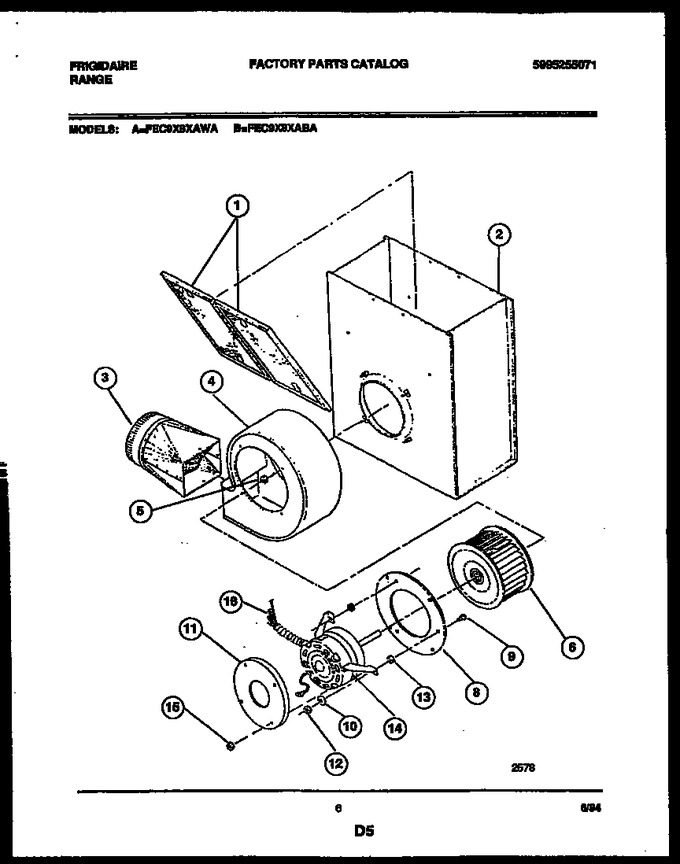

04 - Motor And Blower Housing Parts
05 - Broiler Drawer Parts
06 - Cooktop Parts
07 - Cooktop Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210445 | Filter (2) |
|
- | |||||
| 2 | 5303210446 | Plenum |
|
- | |||||
| 3 | 5303210448 | Transition 6`` |
|
- | |||||
| 4 | 5303304496 | Housing-blower |
|
- | |||||
| 5 | 5303210451 | Lock Nut-nylon (4) |
|
- | |||||
| 6 | 5303210450 | Blower Wheel |
|
- | |||||
| 7 | 5303210452 | Plate Motor Mtg. |
|
- | |||||
| 8 | 5303210454 | Washer (3) |
|
- | |||||
| 9 | 5303305018 | Shoulder-blot (3) |
|
- | |||||
| 10 | 5303210454 | Washer (3) |
|
- | |||||
| 11 | 5303210455 | Cover-motor |
|
- | |||||
| 12 | 5303210456 | Hex Nut (3) |
|
- | |||||
| 13 | 5303210457 | Rubber Grommet (3) |
|
- | |||||
| 14 | 5303304495 | Motor Blower |
|
- | |||||
| 15 | 5303210459 | Kep Nut (4) |
|
- | |||||
| 16 | 5303210460 | Conduit |
|
- | |||||
| *10363 | 5303210465 | Gasket-motor Mtg (2) |
|
- | |||||
| *10363 | 5303210464 | Spacer-motor Cover (4) |
|
- | |||||
| 16A | 5303210461 | Connector-3/8 Conduit (non-illustrated) |
|
- | |||||
| 2A | 5303210447 | Orifiec Weld Assy. (non-illustrated) |
|
- |
