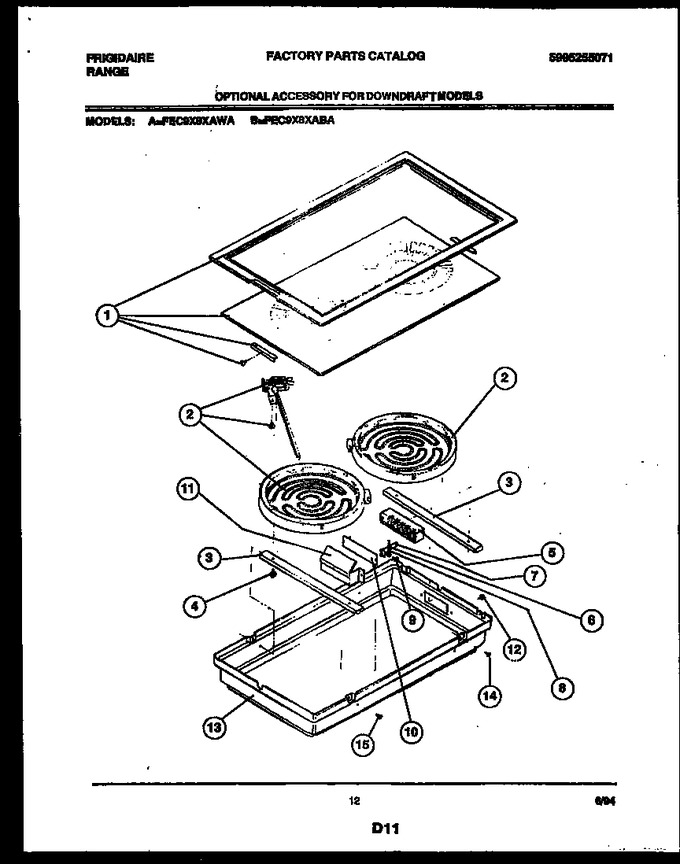

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303304659 | Top Assy Incl-glass-trim-retainer-white |
|
- | |||||
| 2 | 5303304661 | Element Assy Includes Element, Limit Switch |
|
- | |||||
| 3 | 5303210579 | Bracket Element Mtg. |
|
- | |||||
| 4 | 5303210527 | Screw |
|
- | |||||
| 5 | 5303210569 | Block Plug-ceramic |
|
$ 21.05 | |||||
| 6 | 5303210570 | Prong-ground (1) |
|
- | |||||
| 7 | 5303210571 | Prong-power (4) |
|
- | |||||
| 8 | 5303210572 | Harness-wire |
|
- | |||||
| 9 | 5303210497 | Screw |
|
- | |||||
| 10 | 5303210574 | Insulator |
|
- | |||||
| 11 | 5303210575 | Bracket-ceramic Plug |
|
- | |||||
| 12 | 5303210536 | Screw |
|
- | |||||
| 13 | 5303304509 | Pan Module |
|
- | |||||
| 14 | 5303210536 | Screw |
|
- | |||||
| 15 | 5303210527 | Screw |
|
- | |||||
| *10364 | 5303210584 | Harness-wire Limit Switch |
|
- | |||||
| *10364 | 5303210583 | Harness-wire Front |
|
- | |||||
| *10364 | 5303210582 | Harness-wire Rear |
|
- |
