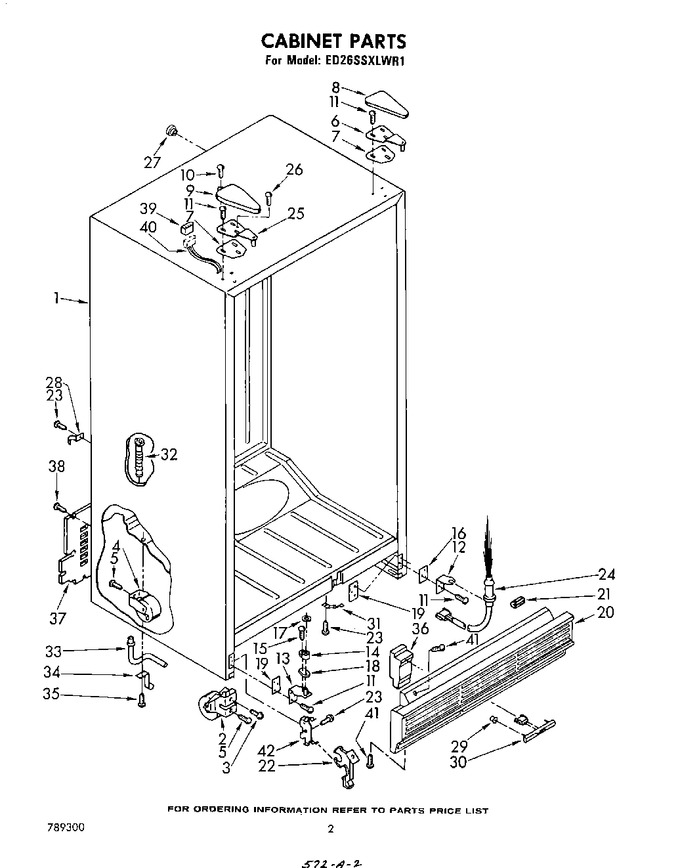

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981127		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 42.18
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	935041		Hinge (top)		Appelez-nous	-
7	992854		Hinge Shim (top)		Appelez-nous	-
8	1100173		Hinge Cover (platinum)		Appelez-nous	-
8	842010		Hinge Cover (white)		Appelez-nous	-
8	989895		Hinge, Cover (coffee)		Appelez-nous	-
8	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
8	989194		Hinge Cover (almond)		Appelez-nous	-
8	1100172		Hinge Cover (toast)		Appelez-nous	-
9	1100381		Hinge Cover (freezer) (toast)		Appelez-nous	-
9	987191		Hinge Cover (freezer) (white)		Appelez-nous	-
9	989884		Hinge Cover (freezer) (coffee)		Appelez-nous	-
9	989885		Hinge Cover (freezer) (golden Harvest)		Appelez-nous	-
9	989887		Hinge Cover (freezer) (almond)		Appelez-nous	-
9	1100382		Hinge Cover (freezer) (platinum)		Appelez-nous	-
10	488915		Screw, 6-32 X 1/2		Appelez-nous	-
11	488949		Screw (repair)		Appelez-nous	-
11	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
12	939152		Hinge, Bottom		Appelez-nous	-
13	986764		Hinge Bottom (l.h)		Appelez-nous	-
14	WPW10329686		Door Closer   (Replaces: 986759)			Immediately	$ 5.90
15	WP486579		Screw, 8-32 X 1/4   (Replaces: 487983)				$ 7.89
15	488913		Screw (repair)		Appelez-nous	-
16	836196		Shim, Bottom Hinge		Appelez-nous	-
17	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
18	987179		Shim, Door Closer		Appelez-nous	-
19	836162		Tap Plate, Hinge		Appelez-nous	-
20	944276		Exterior, Grille (coffee)		Appelez-nous	-
20	944277		Exterior, Grille (golden Harvest)		Appelez-nous	-
20	944279		Exterior, Grille (almond)		Appelez-nous	-
20	1101463		Exterior, Grille (toast)		Appelez-nous	-
20	1101464		Exterior, Grille (platinum)		Appelez-nous	-
20	944275		Exterior, Grille (white)		Appelez-nous	-
21	546131		Bumper, Grille		Appelez-nous	-
22	WP944224		Grille Support   (Replaces: 944224)				$ 7.94
23	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
24	939247		Wiring Assembly Door		Appelez-nous	-
25	983608		Hinge, Top Freezer		Appelez-nous	-
26	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 7.08
27	839989		Grommet		Appelez-nous	-
28	836472		Tube, Clamp		Appelez-nous	-
29	936571		Stud Anchor		Appelez-nous	-
30	939257		Door Sensor, Escutcheon (white)		Appelez-nous	-
30	939954		Door Sensor, Escutcheon (golden Harvest)		Appelez-nous	-
30	939956		Door Sensor, Escutcheon (almond)		Appelez-nous	-
30	1101473		Door Sensor, Escutcheon (toast)		Appelez-nous	-
30	1101474		Door Sensor, Escutcheon (platinum)		Appelez-nous	-
30	939953		Door Sensor, Escutcheon (coffee)		Appelez-nous	-
31	939988		Clip Wiring		Appelez-nous	-
32	982904		Drain Fitting, Liner		Appelez-nous	-
33	841646		Extension, Drain Fitting		Appelez-nous	-
34	841648		Clip, Drain Extension		Appelez-nous	-
35	488978		Screw, 8-15 X 3/8		Appelez-nous	-
36	836372		Insert, Air Baffle		Appelez-nous	-
37	1101165		Cover, Unit Compartment		Appelez-nous	-
38	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
39	851648		Receptacle, Head		Appelez-nous	-
40	482553		Harness, Wiring (6`` Leads) (includes Illus. 13)		Appelez-nous	-
41	489085		Screw, 8-22 X 5/16		Appelez-nous	-
42	989068		Clip, Grille		Appelez-nous	-
