Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 940467 Panel, Servadoor (coffee) Appelez-nous -
1 1101446 Panel, Servadoor (platinum) Appelez-nous -
1 940466 Panel, Servadoor (white) Appelez-nous -
1 1101445 Panel, Servadoor (toast) Appelez-nous -
1 940468 Panel, Servadoor (golden Harvest) Appelez-nous -
1 940470 Panel, Servadoor (almond) Appelez-nous -
2 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

3 WP488729 Screw, 8 X 1/2   (Replaces: 488320) In-Stock Immediately $ 8.28

4 986157 Sleeve, Hinge Pivot Appelez-nous -
5 991331 Bracket, Door Stop Appelez-nous -
6 00488977 Screw (repair)   (Replaces: 488977) Special Order $ 1,526.98

6 488956 Screw, 8 X 7/16 Appelez-nous -
7 986434 Insulation, Servadoor Appelez-nous -
8 991745 Gasket, Servadoor (for Platinum Model Only) Appelez-nous -
8 944468 Gasket, Serva-door Appelez-nous -
9 935105 End, Cap Handle Special Order $ 32.80

10 935103 Centercap, Handle Appelez-nous -
11 936733 Handle, Center (golden Harvest) Appelez-nous -
11 1101442 Center, Handle (platinum) Appelez-nous -
11 1101441 Center, Handle (toast) Appelez-nous -
11 945152 Handle, Center (white, Coffee) Appelez-nous -
11 945154 Handle, Center (almond) Appelez-nous -
12 935076 Shim, Handle End Appelez-nous -
13 935075 Shim, Handle Center Appelez-nous -
14 489008 Screw, 8-32 X 7/16 Appelez-nous -
15 488844 Screw, 8-32 X 1/2 Appelez-nous -
16 935885 Insert, Handle Appelez-nous -
17 935875 Retainer, Insert Appelez-nous -
18 935106 End Cap, Retainer Appelez-nous -
19 936711 Cover, End Cap Appelez-nous -
20 1101457 Interior Panel (servadoor) (for Platinum Model Only) Appelez-nous -
20 944469 Interior Panel (servadoor) Appelez-nous -
21 987911 Hinge, Top Appelez-nous -
22 986168 Shim, Hinge Top Appelez-nous -
23 488927 Screw, 8-32 X 5/8 Appelez-nous -
24 941766 Ground, Clip Appelez-nous -
25 212643 Sealer, Gum (4 Feet) In-Stock Immediately $ 82.13

25 479502 Tape, Vinyl 3/4 X 108``) Special Order $ 66.77

25 876370 Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) Special Order $ 243.14

25 876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) Appelez-nous -
25 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

25 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

25 488306 Washer Appelez-nous -
25 833938 Kit, Terminal Connector Special Order $ 8.47

25 876370 Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941) Special Order $ 243.14

25 876370 Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305) Special Order $ 243.14

25 WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 182.65

25 WP542638 Grease, Silicone (1/2 Oz.)   (Replaces: 542638) In-Stock Immediately $ 12.78

25 542639 Cement, Alumilastic 1-1/4 Oz.) Appelez-nous -
25 WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 123.84

25 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

25 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

25 606755 Bag, Insulation (36-5/8`` X 46``) Special Order $ 82.37

25 799833 Kit, Evaporator Repair (aluminum Epoxy) Appelez-nous -
25 799832 Kit. Porcelain Repair (white) Appelez-nous -
25 799908 Silicone (spray) Appelez-nous -
25 DD81-03944A Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108) Special Order $ 109.25

25 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

25 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
25 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

25 799340 Enamel, Black (1 Qt. Uncut) Appelez-nous -
25 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

25 261887 Enamel, Coffee (1 Qt. Uncut) Appelez-nous -
25 261891 Enamel, Gold (1 Qt. Uncut) Appelez-nous -
25 978883 Enamel, Almond (1 Qt. Uncut) Appelez-nous -
25 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
25 285368 Enamel, Platinum (1 Qt. Uncut) Appelez-nous -
350942 Primer White (13 Oz. Spray Can) Special Order $ 94.14

677821 Compactor Special Order $ 35.01

677818 Manual, Do-it- Yourself Repair (dryer) Appelez-nous -
677813 Automatic Washer (belt Drive) Appelez-nous -
LIT789300 List, Repair Parts Appelez-nous -
LIT110505 Tech Sheet (service Information) Appelez-nous -
LIT944014 Care & Use Guide Appelez-nous -
LIT946878 Energy Guide Appelez-nous -
677967 Dishwasher Appelez-nous -
285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
285365 Paint, Spray (13 Oz.) (toast) Appelez-nous -
261890 Xenamel, Gold (13 Oz. Spray Can) Appelez-nous -
261886 Xenamel, Coffee (13 Oz. Spray Can) Appelez-nous -
350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

285006 Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939) Special Order $ 59.89

350941 Xleveler, Enamel (13 Oz. Spray Can) Appelez-nous -
350956 Xenamel, Almond (13 Oz. Spray Can) Special Order $ 54.01


    View Diagram in Separate Window     Print Icon   Print Part List

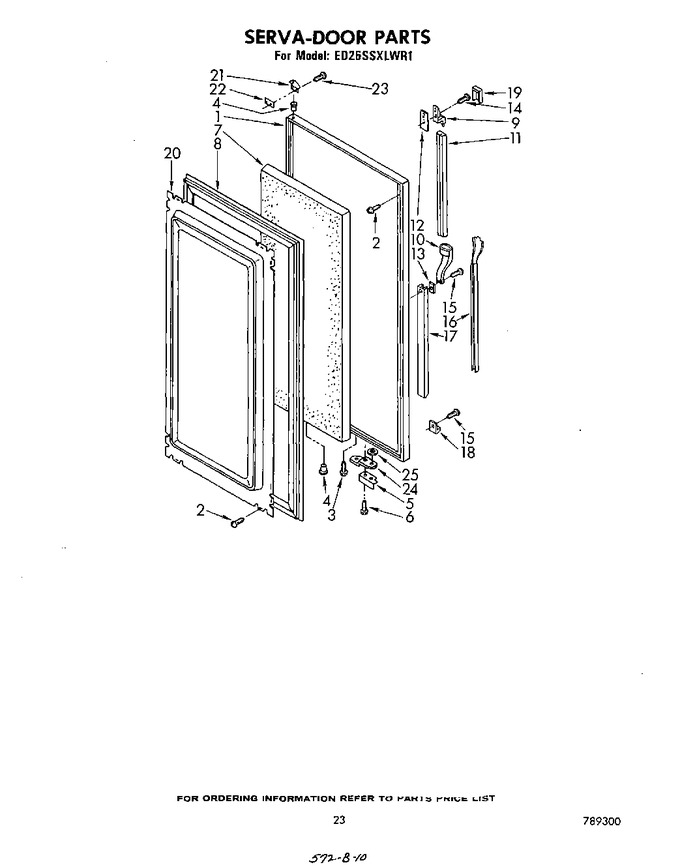

Diagram for ED26SSXLWR1
