Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 941971 Exterior Door Panel (almond) Appelez-nous -
1 1101466 Exterior Door Panel (platinum) Appelez-nous -
1 1101465 Exterior Door Panel (toast) Appelez-nous -
1 941967 Exterior Door Panel (white) Appelez-nous -
1 941968 Exterior Door Panel (coffee) Appelez-nous -
1 941969 Exterior Door Panel (golden Harvest) Appelez-nous -
2 534927 Hole Plug Appelez-nous -
3 986169 Shim, Bottom Hinge Appelez-nous -
4 987914 Hinge, Bottom Appelez-nous -
5 988417 Bracket, Door Stop Appelez-nous -
6 WP250830 Screw, 8-32 X 1/2   (Replaces: 488096) Special Order $ 8.78

7 939205 Magnet Cover (for Platinum Model Only) Appelez-nous -
7 944473 Magnet Cover Appelez-nous -
8 939206 Magnet Appelez-nous -
9 488895 Screw Appelez-nous -
10 939341 Door Gasket, Magnetic (for Platinum Model Only) Appelez-nous -
10 944457 Door Gasket, Magnetic Appelez-nous -
11 982887 Retainer, Gasket Side Appelez-nous -
12 836121 Retainer, Gasket Top & Bottom Appelez-nous -
13 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 8.47

13 WP489069 Screw, 7 X 1/2   (Replaces: 489089) In-Stock Immediately $ 8.40

14 944458 Gasket, Seal Appelez-nous -
14 935453 Gasket, Seal (for Platinum Model Only) Appelez-nous -
15 986164 Reinforcement Strip, Top & Bottom (2) Appelez-nous -
16 986163 Reinforcement Strip, Side Appelez-nous -
17 WP488729 Screw, 8 X 1/2   (Replaces: 487909) In-Stock Immediately $ 8.28

18 935105 End, Cap Handle Special Order $ 32.80

19 935103 Center, End Cap Appelez-nous -
20 935096 Handle, Center (golden Harvest) Appelez-nous -
20 945146 Handle, Center (almond) Appelez-nous -
20 1101437 Center, Handle (toast) Appelez-nous -
20 1101438 Center, Handle (platinum) Appelez-nous -
20 945144 Handle, Center (white, Coffee) Appelez-nous -
21 935076 Shim, Handle Appelez-nous -
22 935075 Shim, Handle Center Appelez-nous -
23 WP939101 Screw, Anchor   (Replaces: 939101) Special Order $ 7.88

24 941242 Screw Anchor Appelez-nous -
25 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

26 WPW10141645 Screw, 8 X 1/2   (Replaces: 489084) Special Order $ 8.05

27 941955 Insert, Handle Appelez-nous -
28 941954 Retainer Insert Appelez-nous -
29 941259 End Cap Appelez-nous -
30 489075 Screw, 10-32 X 5/8 Appelez-nous -
31 987873 End Cap Cover Appelez-nous -
32 939248 Connector, Edge Appelez-nous -
33 939958 Key, Lock Plug Appelez-nous -
35 939984 Escutcheon, Switch & Sensor Appelez-nous -
36 943518 Switch Appelez-nous -
37 944460 Interior Door Panel Appelez-nous -
37 1101479 Interior Door Panel (for Platinum Model Only) Appelez-nous -
38 986453 Trim Periphery Appelez-nous -
39 1101480 Interior Door Pan, Storage (for Platinum Model Only) Appelez-nous -
39 945212 Interior Door Pan, Storage Appelez-nous -
40 986455 Panel, Decorative Appelez-nous -
41 936954 Trim, Decorative Appelez-nous -
42 986454 Cap Trim Joint Appelez-nous -
43 944463 Housing, Rocker Arm Appelez-nous -
43 1101453 Housing, Rocker Arm (for Platinum Model Only) Appelez-nous -
44 1101454 Rocker Arm (for Platinum Model Only) Appelez-nous -
44 944464 Rocker Arm Appelez-nous -
45 944465 Escutcheon, Panel Opening Appelez-nous -
45 1101455 Escutcheon, Panel Opening (for Platinum Model Only) Appelez-nous -
46 986448 Trim, Door Shelf Appelez-nous -
47 988746 Trim, Door Shelf Appelez-nous -
48 839904 Retainer, Door Trim (for Platinum Model Only) Special Order $ 5.65

48 943125 Retainer, Door Trim Appelez-nous -
49 940084 Door, Compartment Appelez-nous -
50 983804 Shelf Ladder, Door Appelez-nous -
51 537095 Expansion Clip Appelez-nous -
52 WP488729 Screw, 89 X 1/2   (Replaces: 488320) In-Stock Immediately $ 8.28

53 840847 Door, Closer Appelez-nous -
54 488624 Screw, 8 X 3/8 Appelez-nous -
55 945147 Door Shelf, Cantilever Appelez-nous -
55 986449 Door Shelf, Cantilever (for Platinum Model Only) Appelez-nous -
56 520747 Tray, Butter Appelez-nous -

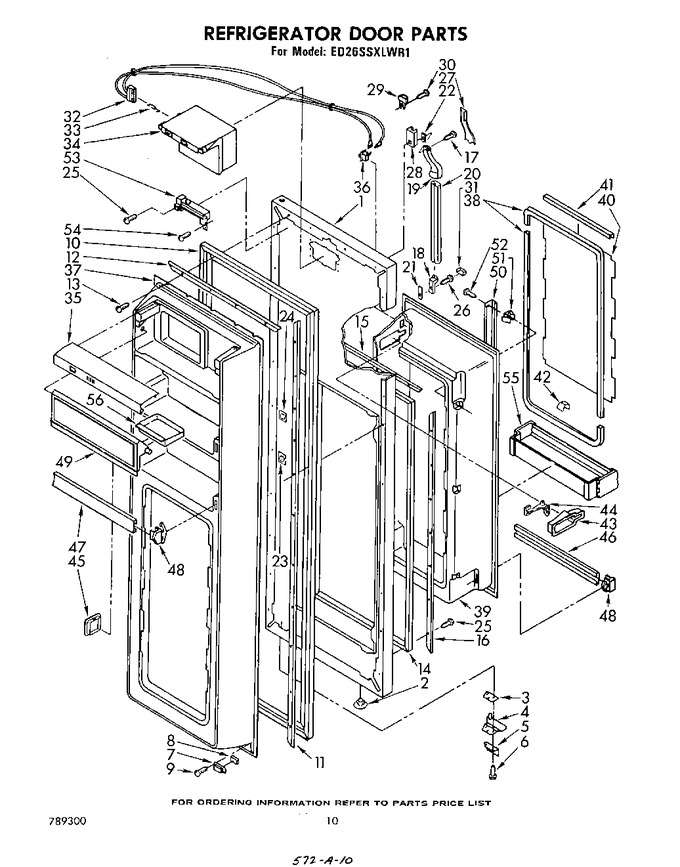

    View Diagram in Separate Window     Print Icon   Print Part List
